EQ-10-8 Speaker

€60,43
€60,43
Prices include tax in EU & UK. Shipping calculated at checkout.
Sold per piece.

The Earthquake EQ line of Maximum Musical Output drivers are specifically designed to provide smooth, low-distortion mid-range/mid-bass output for the highest quality sound reinforcement applications.

Because of their relatively high resonance and very low Qts values, the EQ line can be mounted in small enclosures while maintaining a smooth, peak-free response.
SKU: EQ-10-8
EAN: 0168975910226
Collections:

Specifications
Model Name: EQ-10-8
EAN: 0168975910226

  • Frequency Response: 47Hz - 10kHz
  • MAX Power: 300W
  • Nominal Impedance: 8 ohm
  • Sensitivity: 94 dB
  • Woofer Size: 10"

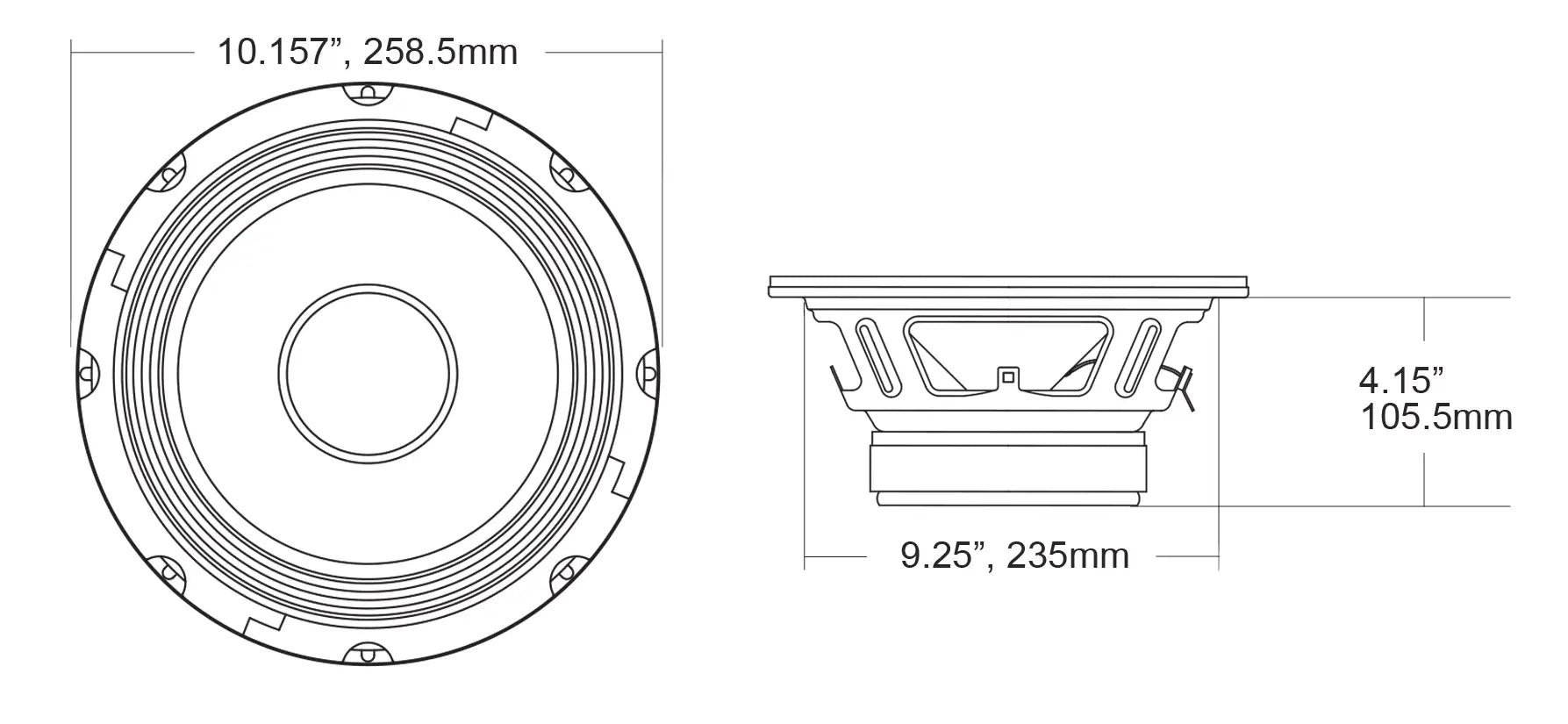

Dimensions

  • Diameter: 258.5 mm
  • Cut out hole: 235 mm
  • Mounting Depth: 105.5 mm

Parameters

  • Fs: 47 Hz
  • Qms: 6.04
  • Qes: 0.43
  • Qts: 0.4
  • Xmax: 4mm

Box Dimensions: N/A
Box Weight: 3.8 kg

  • 8-Ohm or 4-Ohm impedance options
  • Bumped Back Basket
  • Edge-wound aluminum bobbin voice coils
  • Enhanced sound quality
  • Heavy duty ferrite magnets
  • High efficiency / sensitivity
  • Low harmonic distortion
  • Max output
  • Multi roll cloth surround
  • New longer lasting low mass cone
  • Not Vented T-Yoke
  • Stamped steel basket with jet-black finish

EQ-10-8 Manual (ENG)

EQ-10-8 Product Release (ENG)
