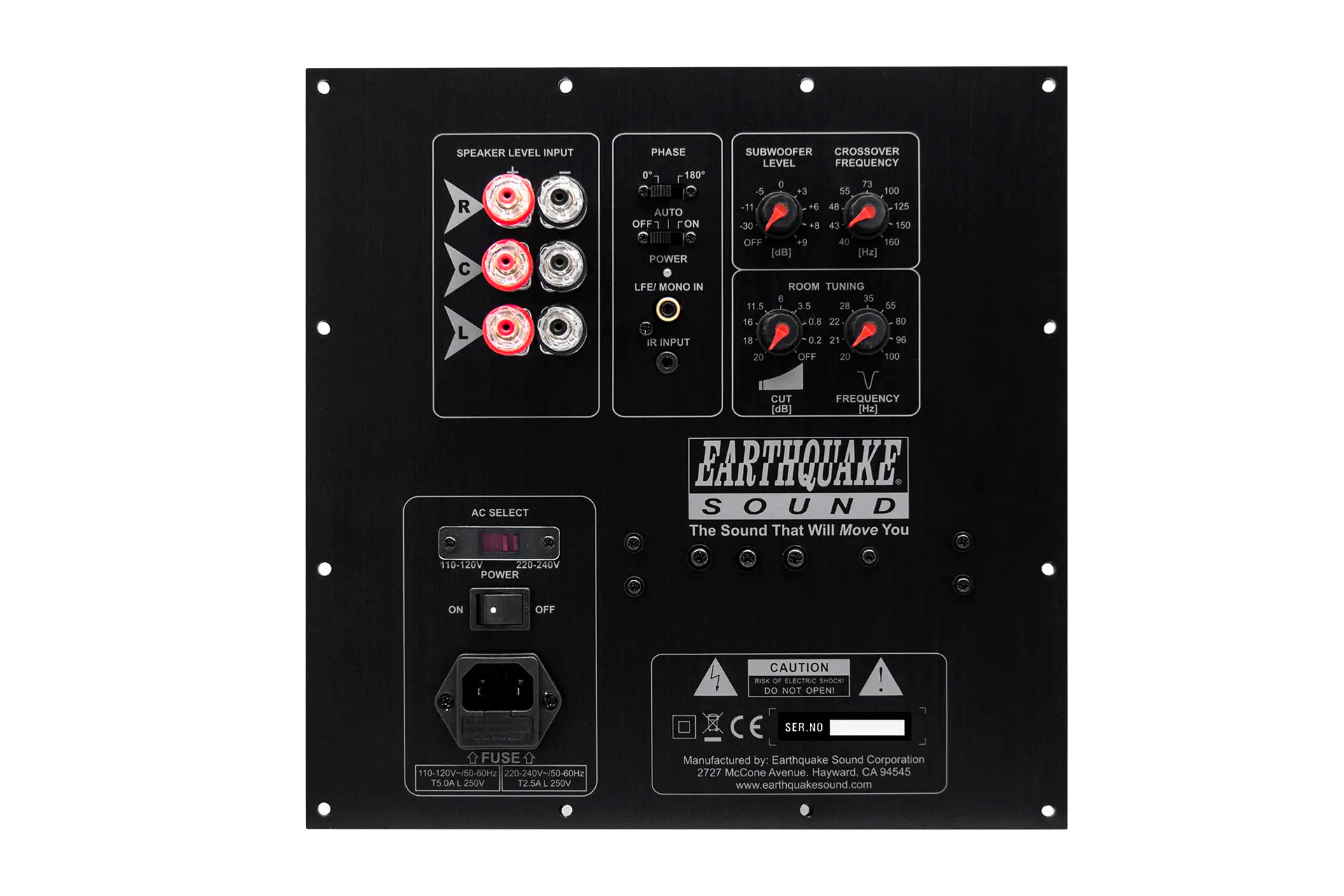

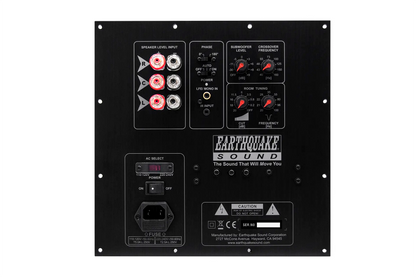

BA-550 Plateamp

With 600 watts into 4 ohm, airtight design for direct mounting in the subwoofer and remote control the BA-550 is hard to beat. BA-550 is designed, developed and rationally produced at Earthquakes own factory. This ensures high performance, overbuilt construction and a fair price. Here, quality is not gobbled up by 10 middlemen.

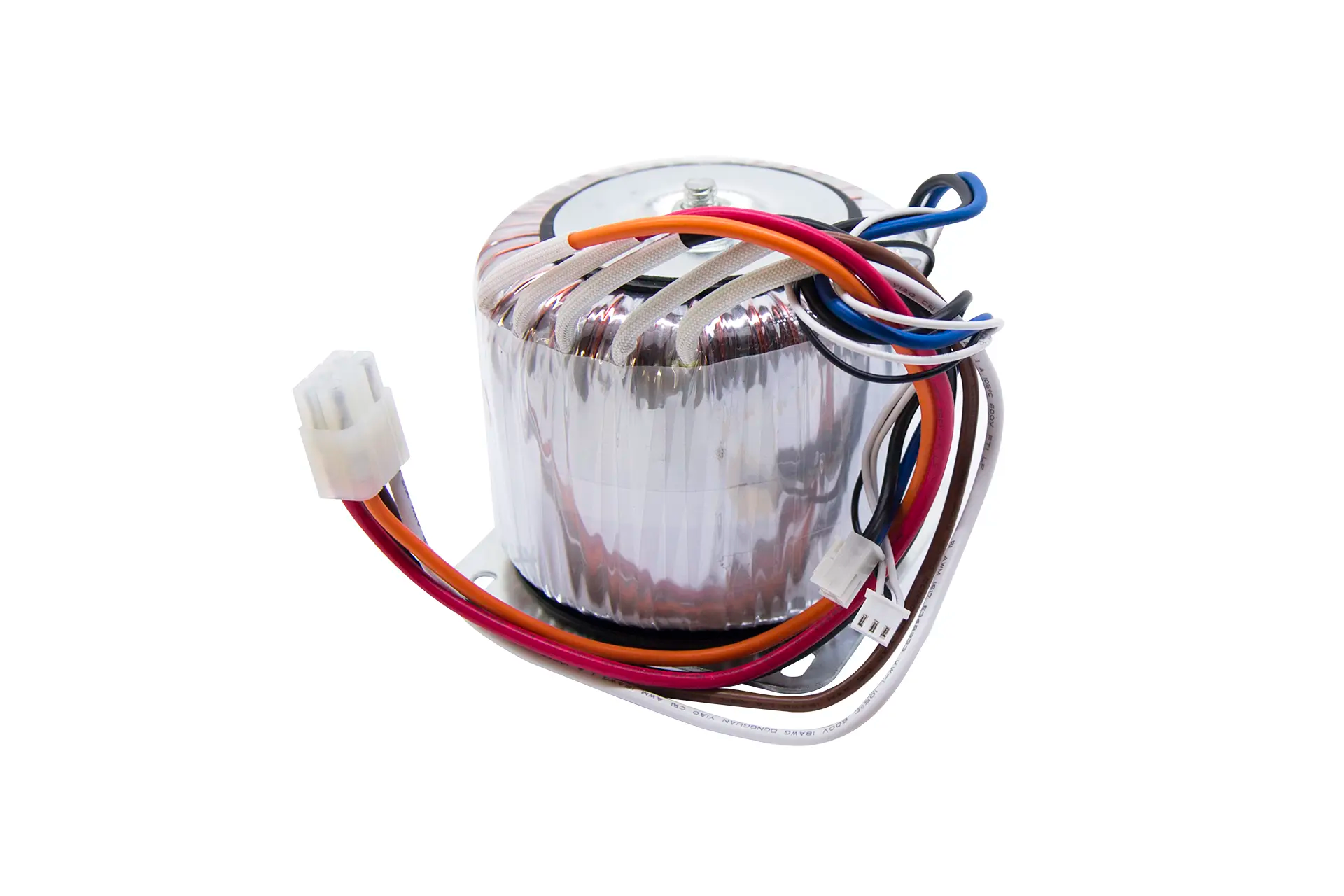

Like the high-end IQ plate amps the BA-550 is equipped with an oversized separate transformer. The separate design reduces the mounting depth thus allowing even smaller subs to be built. The transformer is easily installed in a corner of the cabinet where there is extra space. The transformer is a rigid silicon-steel hard-wound 750VA low regulation toroidal transformer. The large and heavy transformer ensures a stable supply without voltage drop even under heavy load.

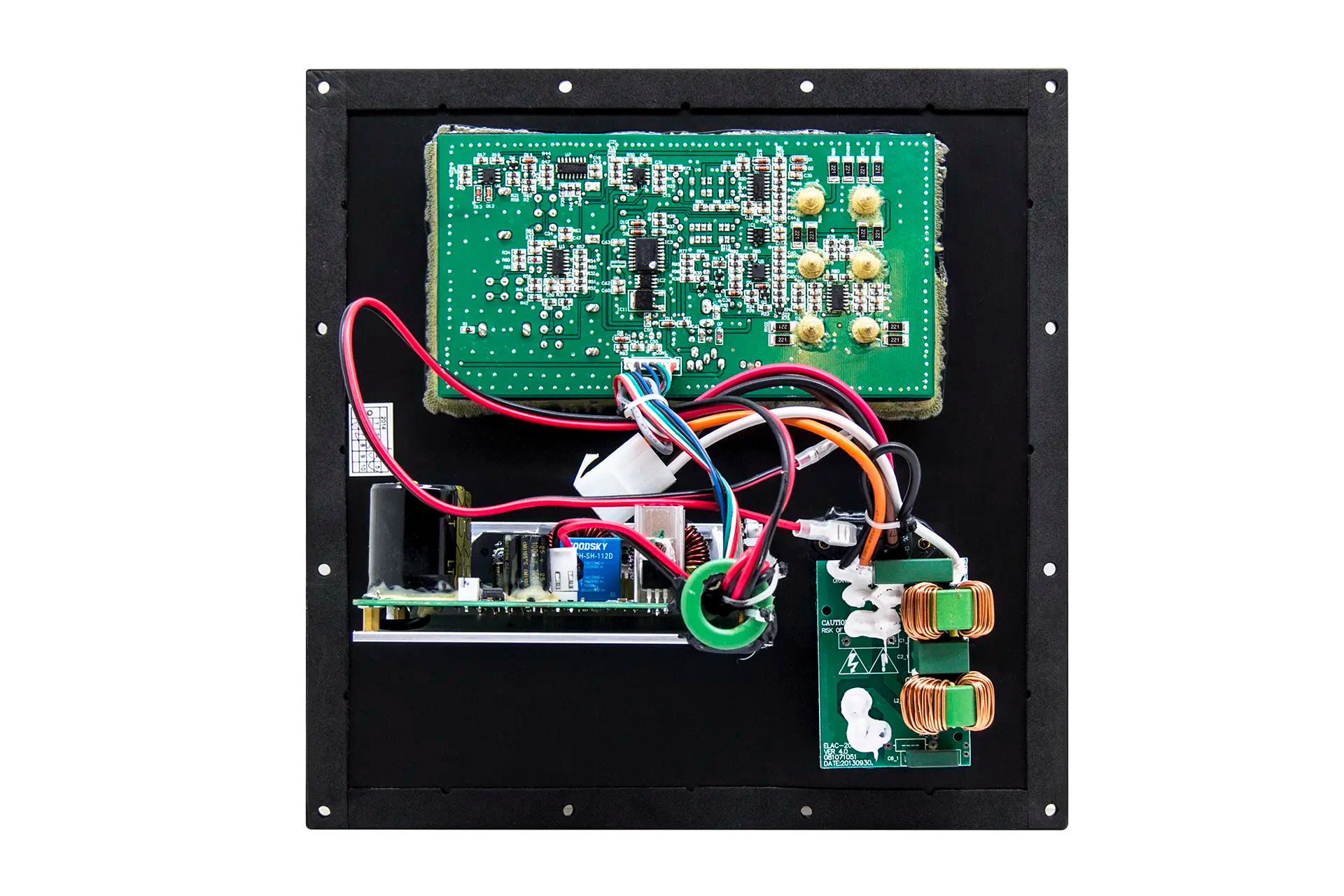

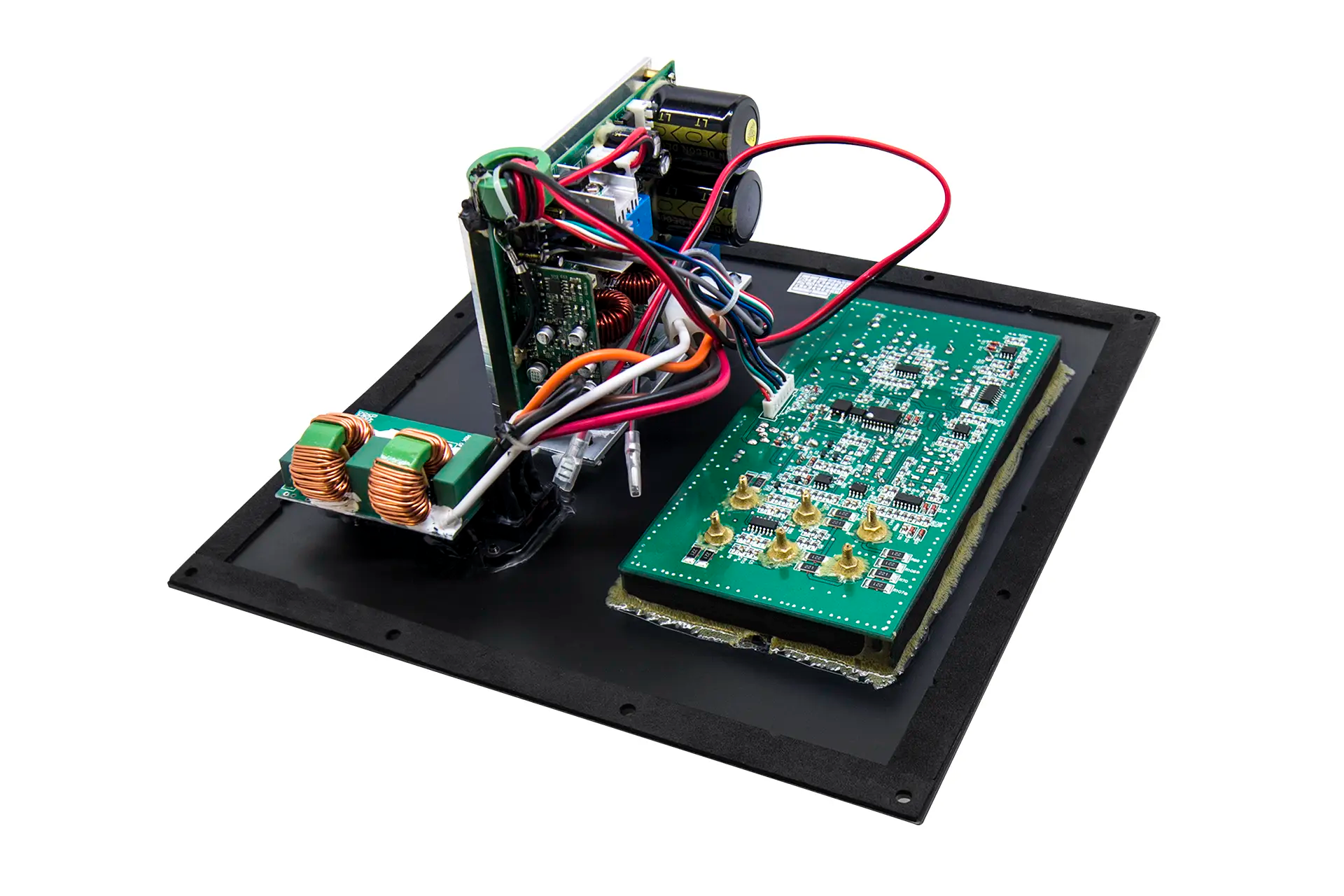

The amplifier is built around Earthquakes Evolved Class D amplifier technology. It uses an efficient and low frequency optimized PWM switching output - resulting in exceptional powerful control over even large and heavy woofers. The amplifier is equipped with 6 high ampere discrete transistors for high and continuous current. No cheap monolith output modules here.

The oversized Evolved Class D amplifier has an efficiency of 90% which means that the amplifier does not get hot even with extended high output. This unique class D design distinguishes itself with high performance and superb bass control. Even the most complex source material is reproduced with precision.

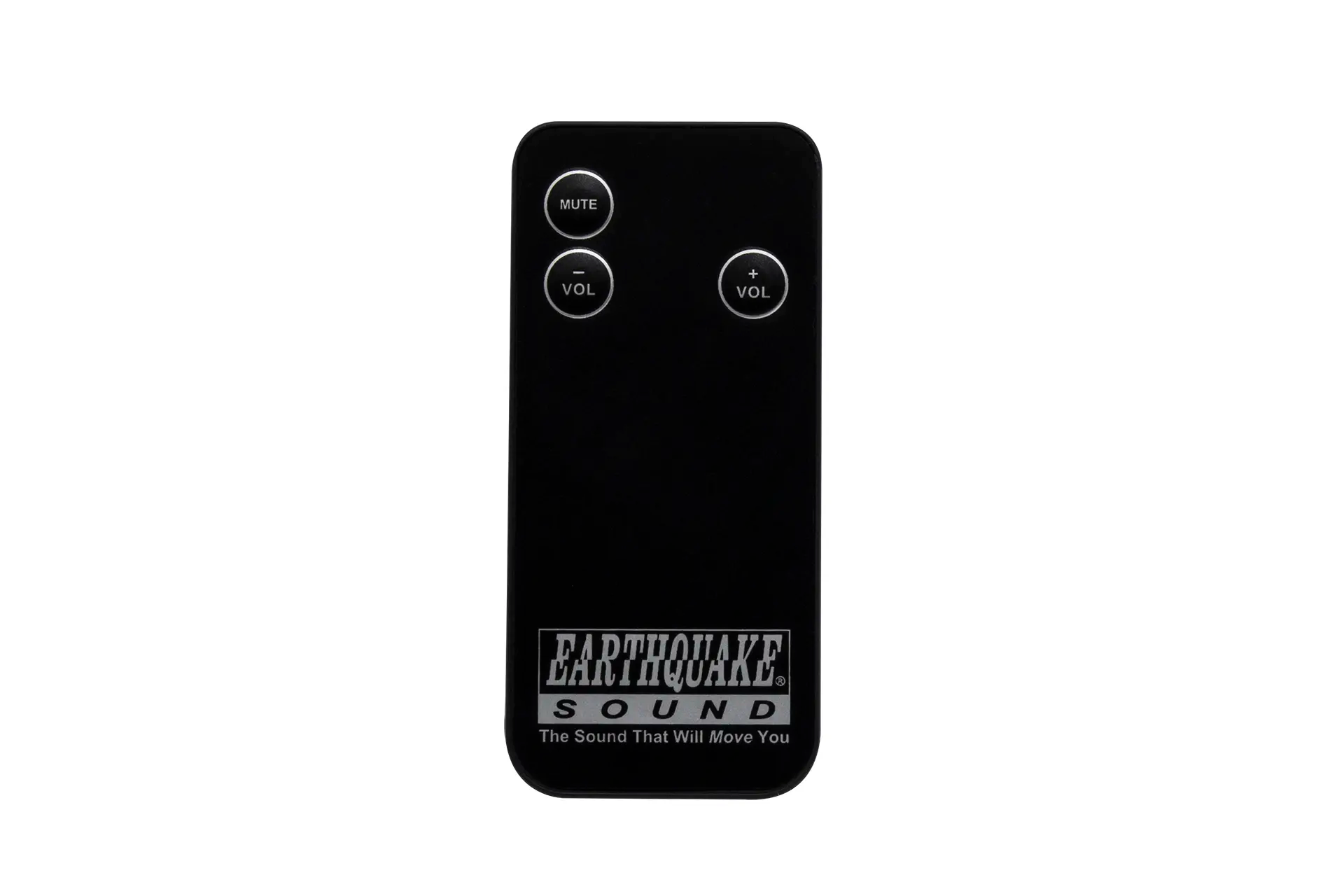

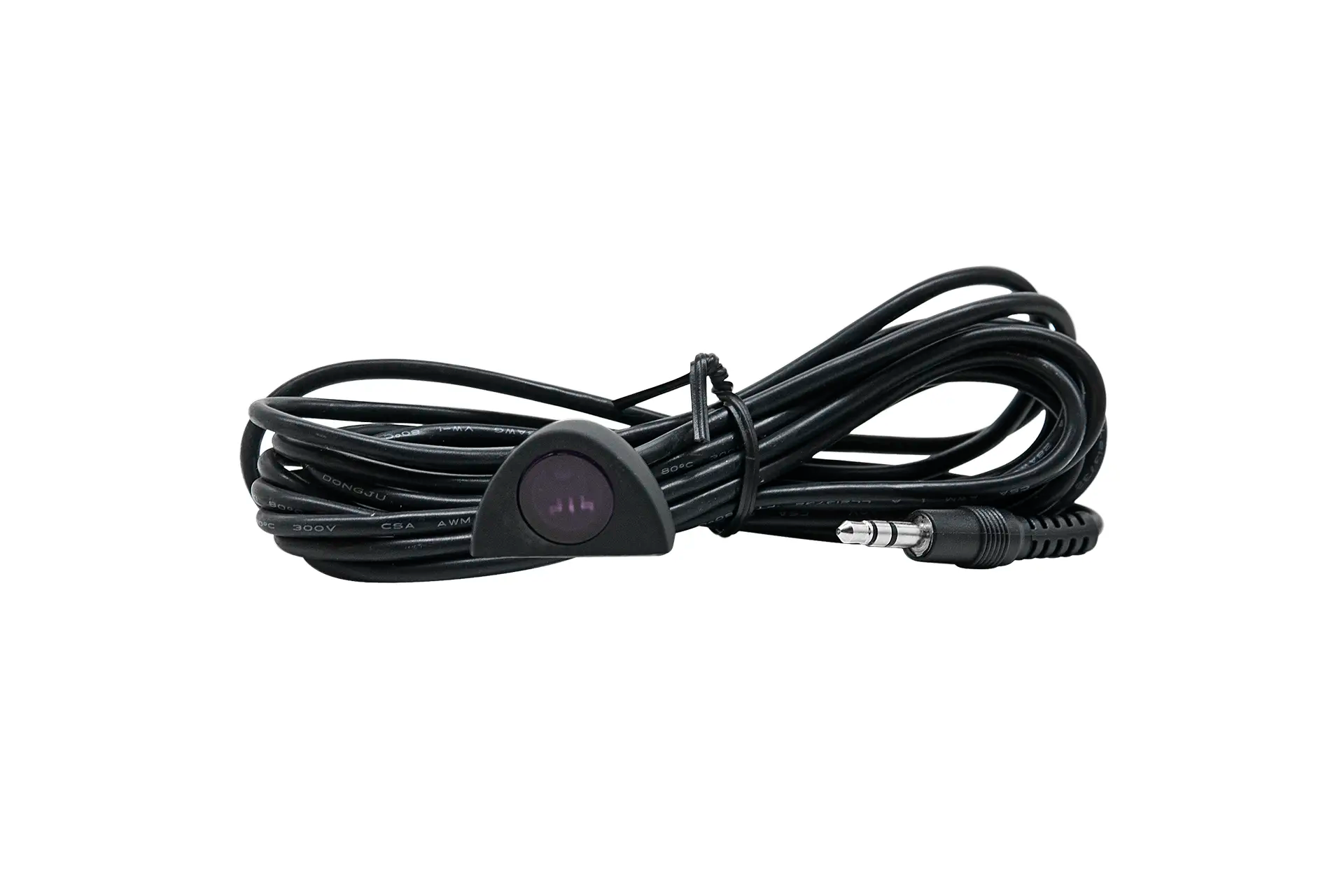

The BA-550 amplifier comes with IR eye and remote control making volume easy to adjust while the subwoofer is playing, wherever it is located.
