Cinenova IR 16 Channel

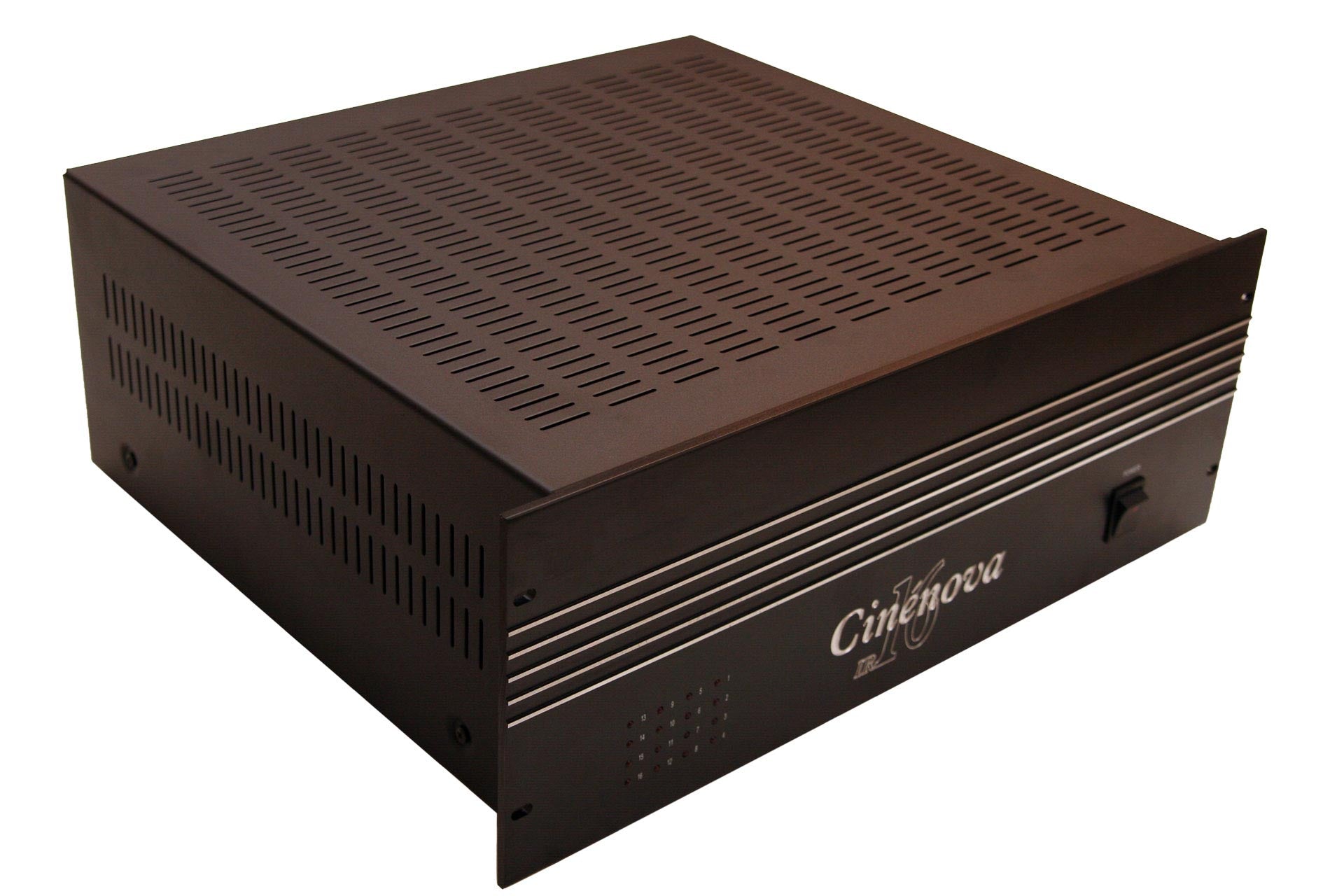

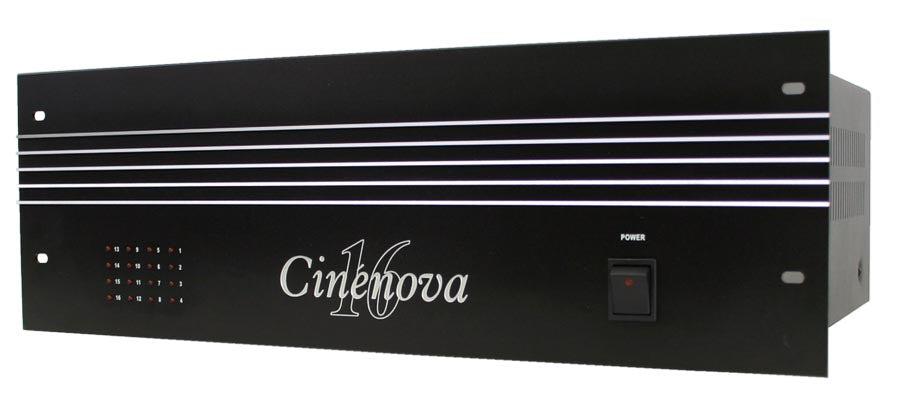

The rack-mountable Cinénova IR16, Earthquake’s 2nd generation 16-channel amplifier, delivers 150 Watts RMS of smooth, clear power to each of its eight (8) zones.

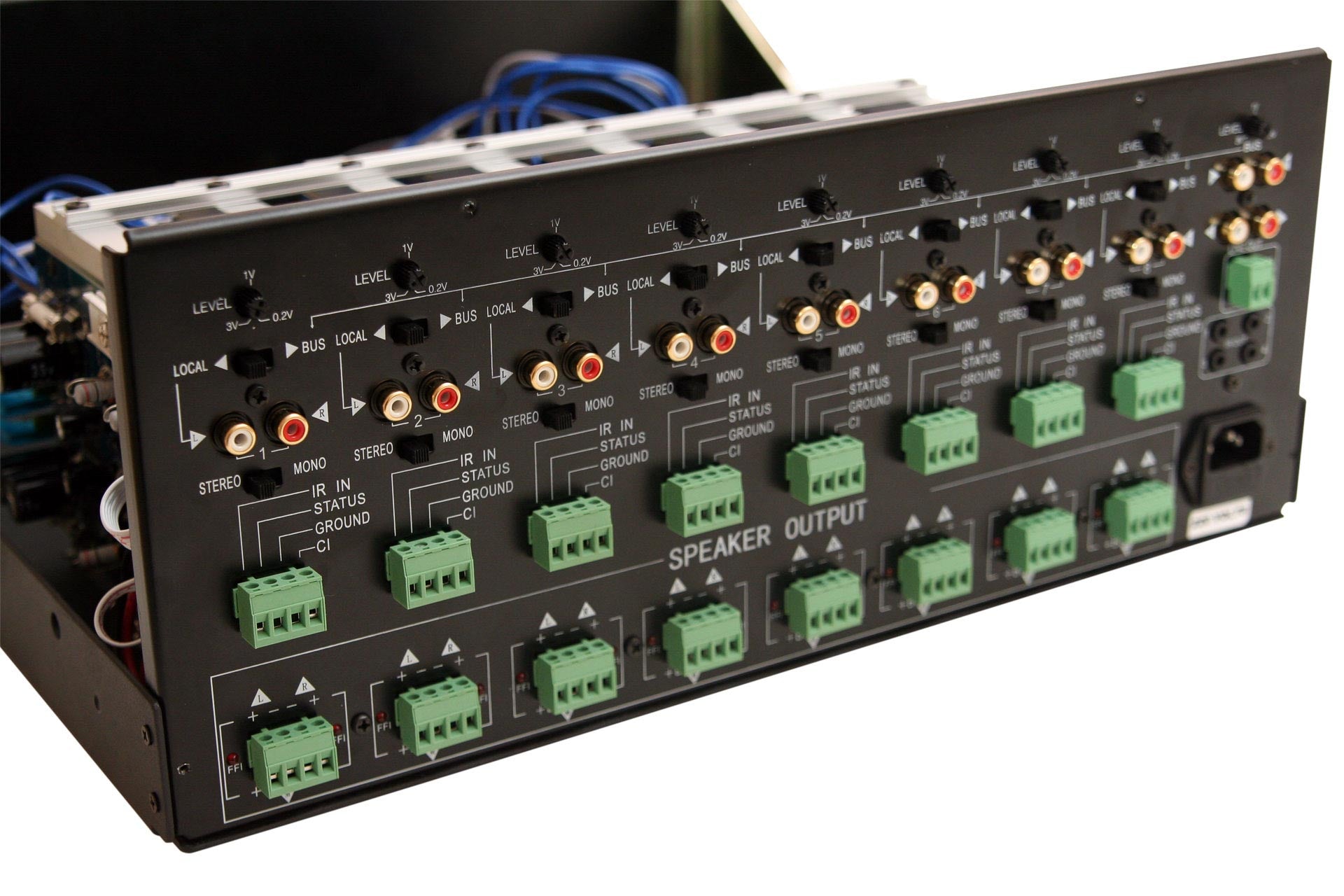

RCA inputs for all eight zones are located on the rear panel. A power-bus system handles zones that share the same input. Each zone can have two (2) pairs of 8-Ohm speakers or one (1) pair of 4-Ohm speakers.

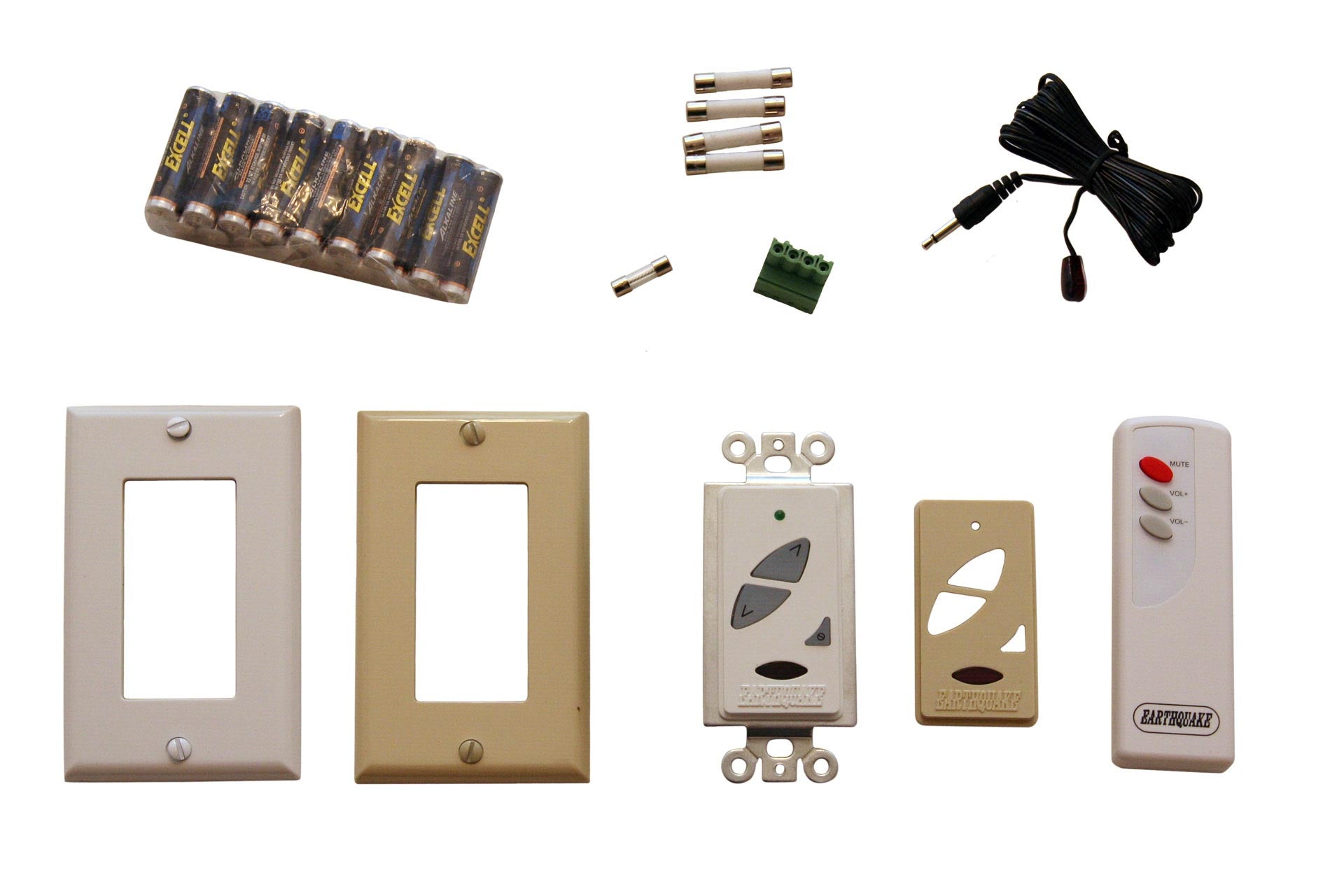

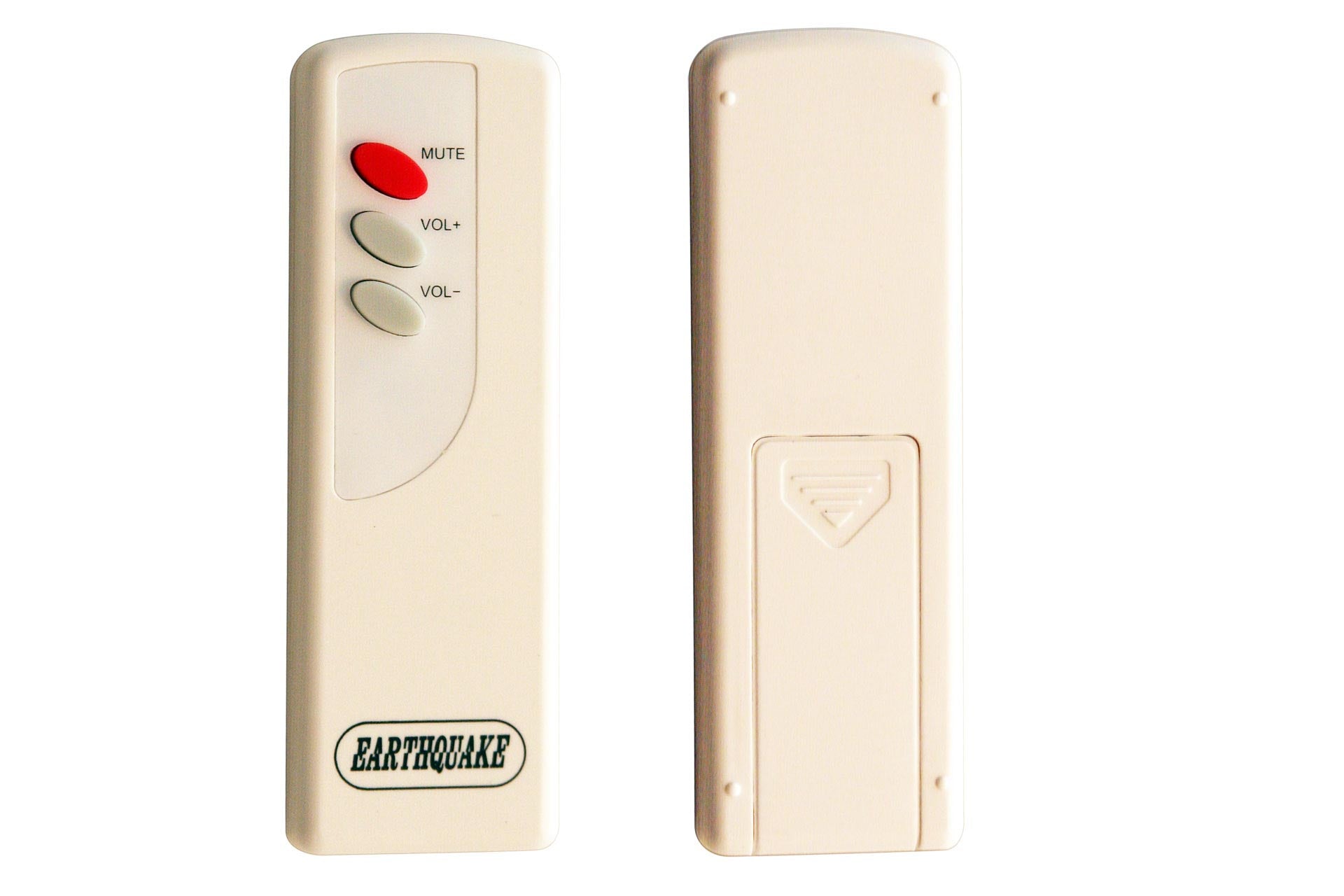

The Cinénova IR16 amplifier comes complete with eight (8) IR keypads, eight (8) remote controls for fantastic flexibility and user-friendly adjustments. The Cinénova IR16 also features Earthquake’s proprietary FFI circuitry which checks each zone for short circuits and then measures the intended load’s impedance to increase long-term reliability.

Cinénova’s world-renowned reputation for exceptional headroom, high value, rugged reliability and undisputed sound quality is built upon this remarkable and versatile 16-channel amplifier.
€0,00
€0,00

Intended Use:

  • Contractors, Custom Installers & Retailers
  • Multi-zone Applications
  • Optimized Power for Imãge, IQ and SweetSpot in-wall and in-ceiling speaker systems.

SPECIAL FEATURES & HIGHLIGHTS

  • Bridgeable output

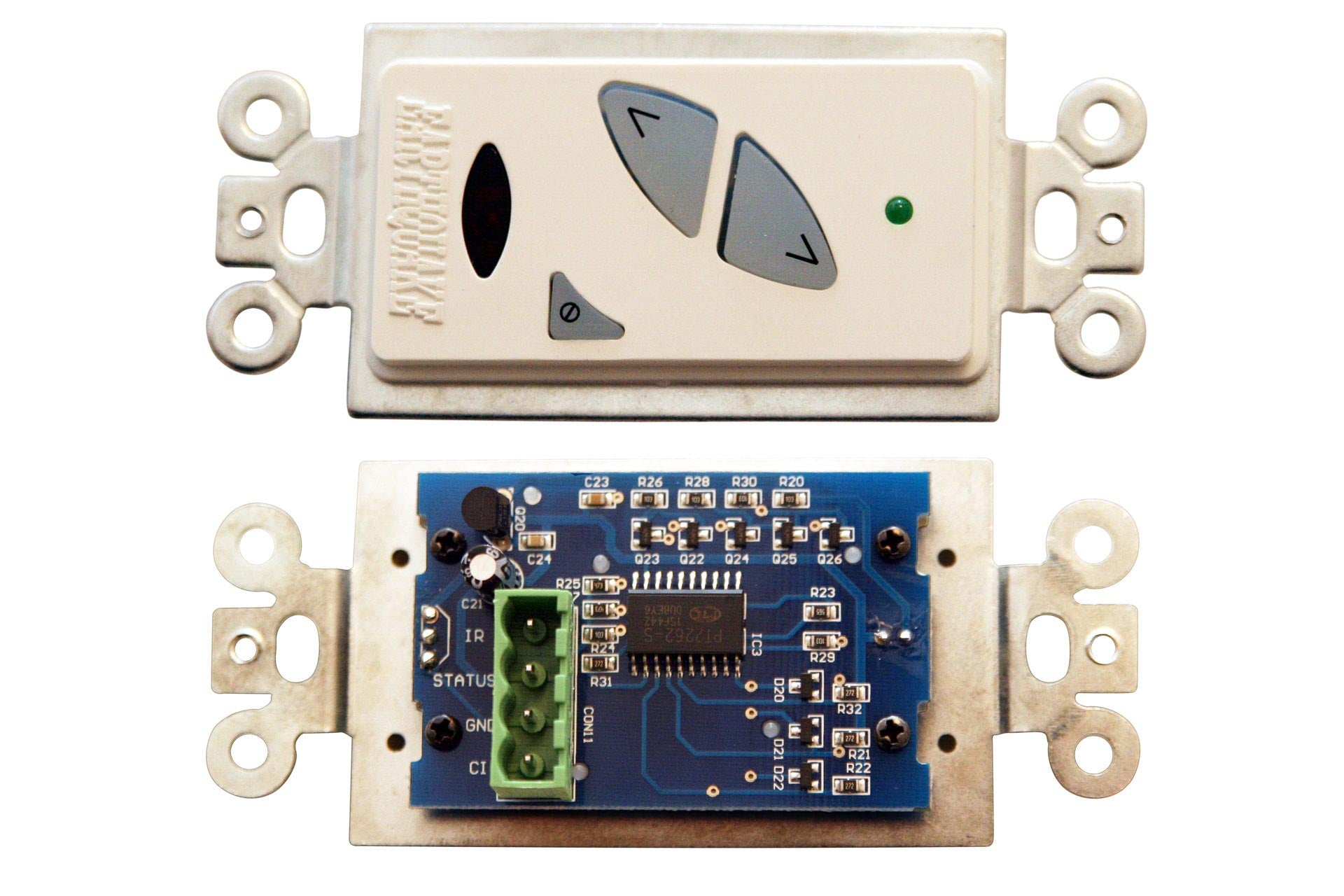

  • Zone IR control with digital pad in each zone (included)

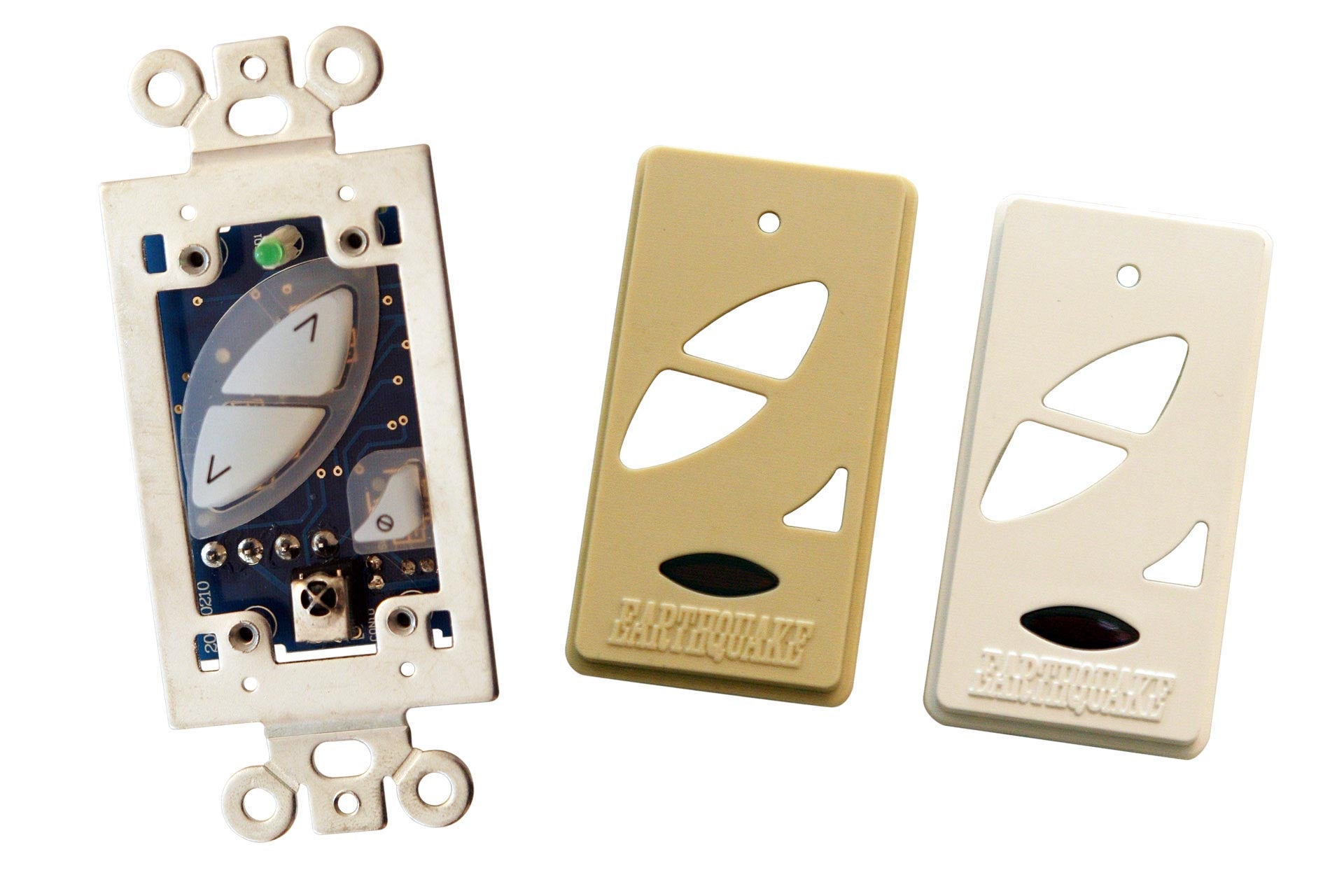

  • Décor friendly keypads

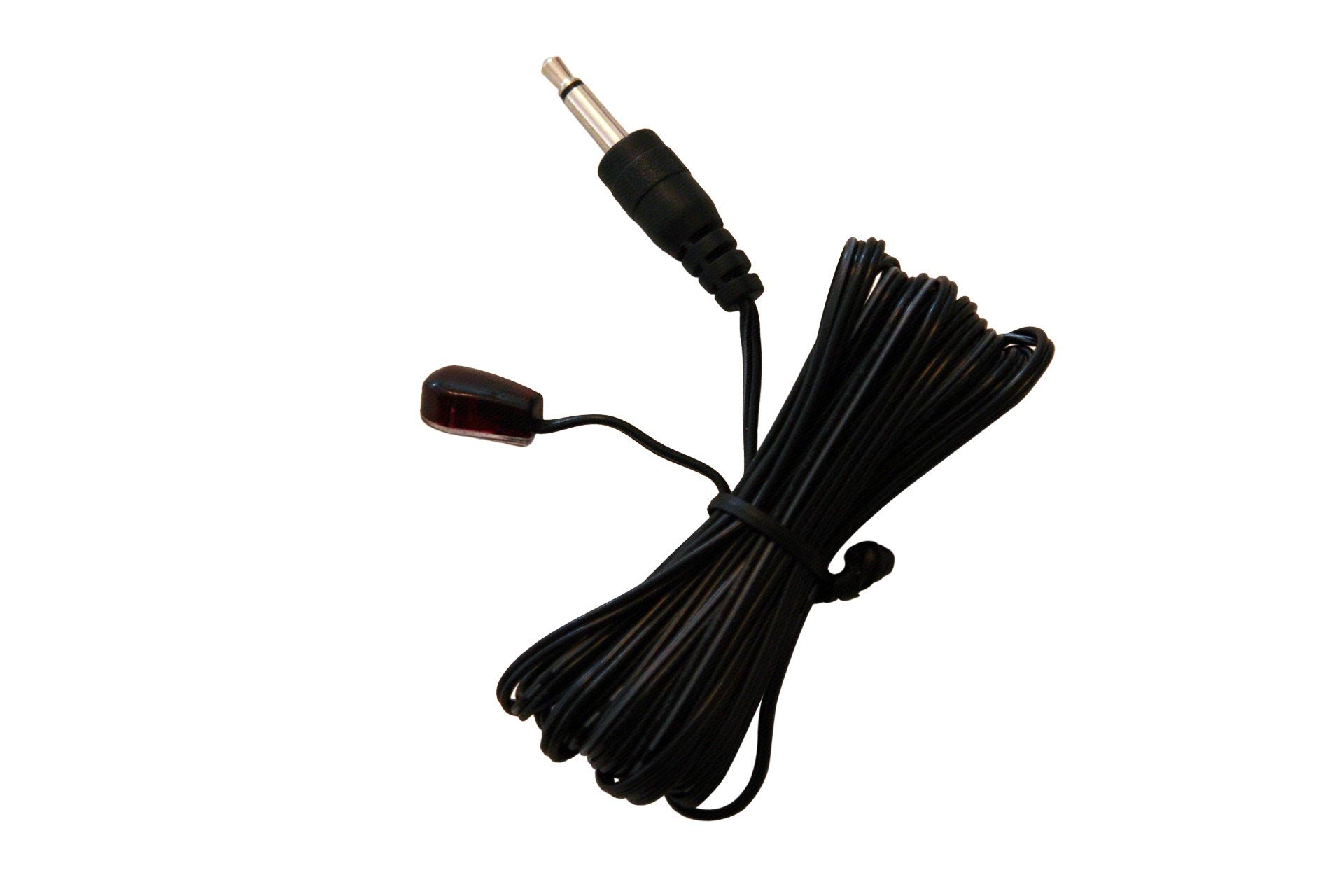

  • Four (4) built-in IR repeaters
  • Rear gain control limiter to limit the output gain of the zone pad
  • Each zone has a LOCAL/BUS input audio selector 12V DC
    trigger

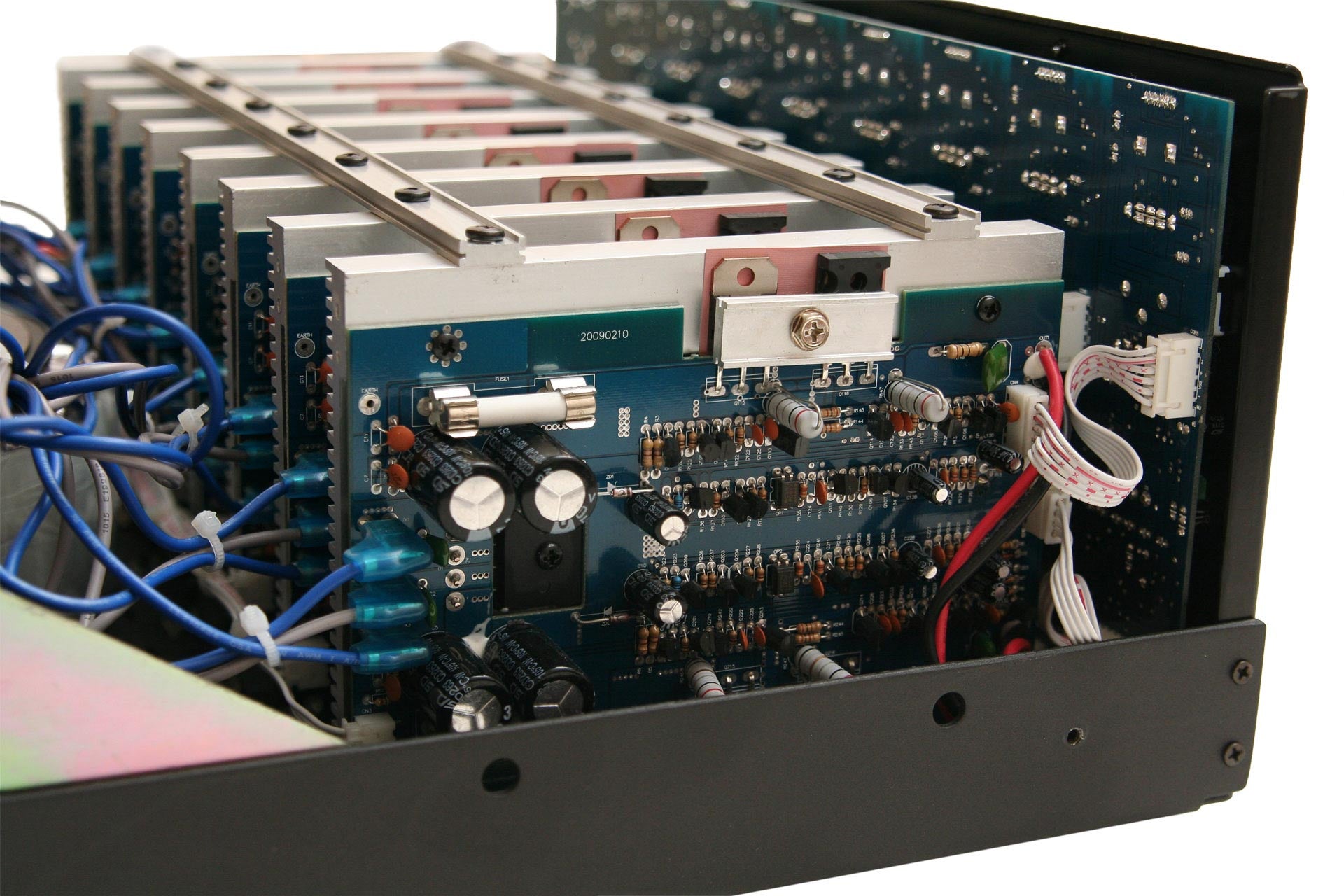

  • Individually driven amplifier blocks (each block is driven by a discrete complementary output class A/B stage with selected components)

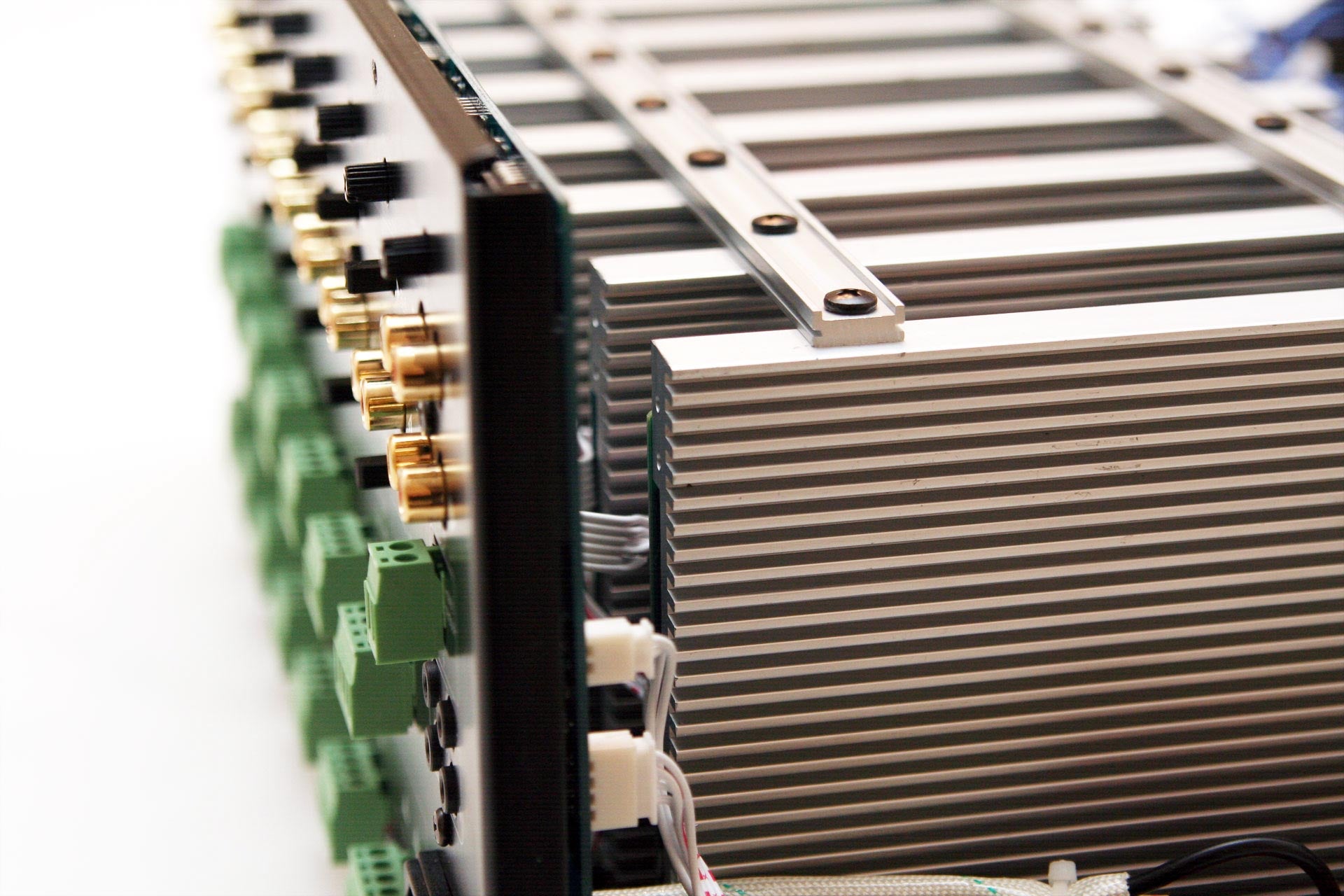

  • Individual power supplies (bifilars) for power isolation, accuracy and better channel separation

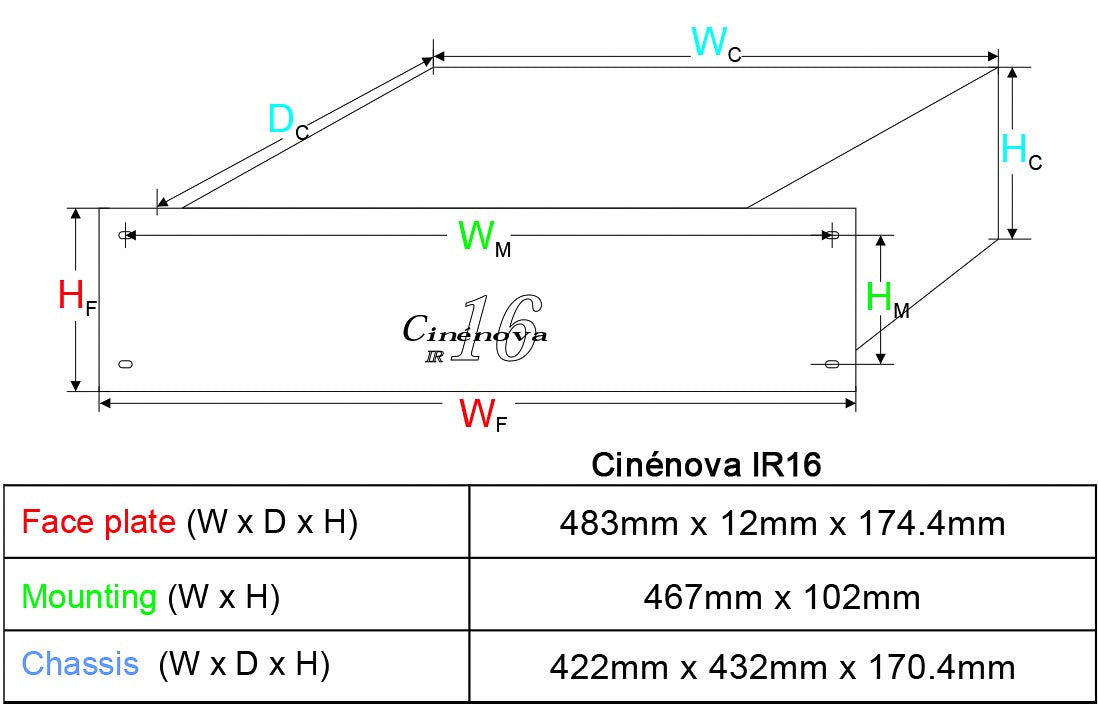

  • Fits in a standard rack mount (4 rack spaces)
