GRANITE-52 Rock Speaker
Rock-on: Granite-52 Speakers
The Granite-52 speakers and Granite-10D subwoofer – part of the new ROCK-on outdoor speaker series, are specifically designed to imitate a rock appearance and easily blend in with any outdoor environment.
Made with UV treated, weather-resistant enclosure materials and durable epoxy resin construction, the ROCK-on speakers can withstand the demanding outdoor elements.

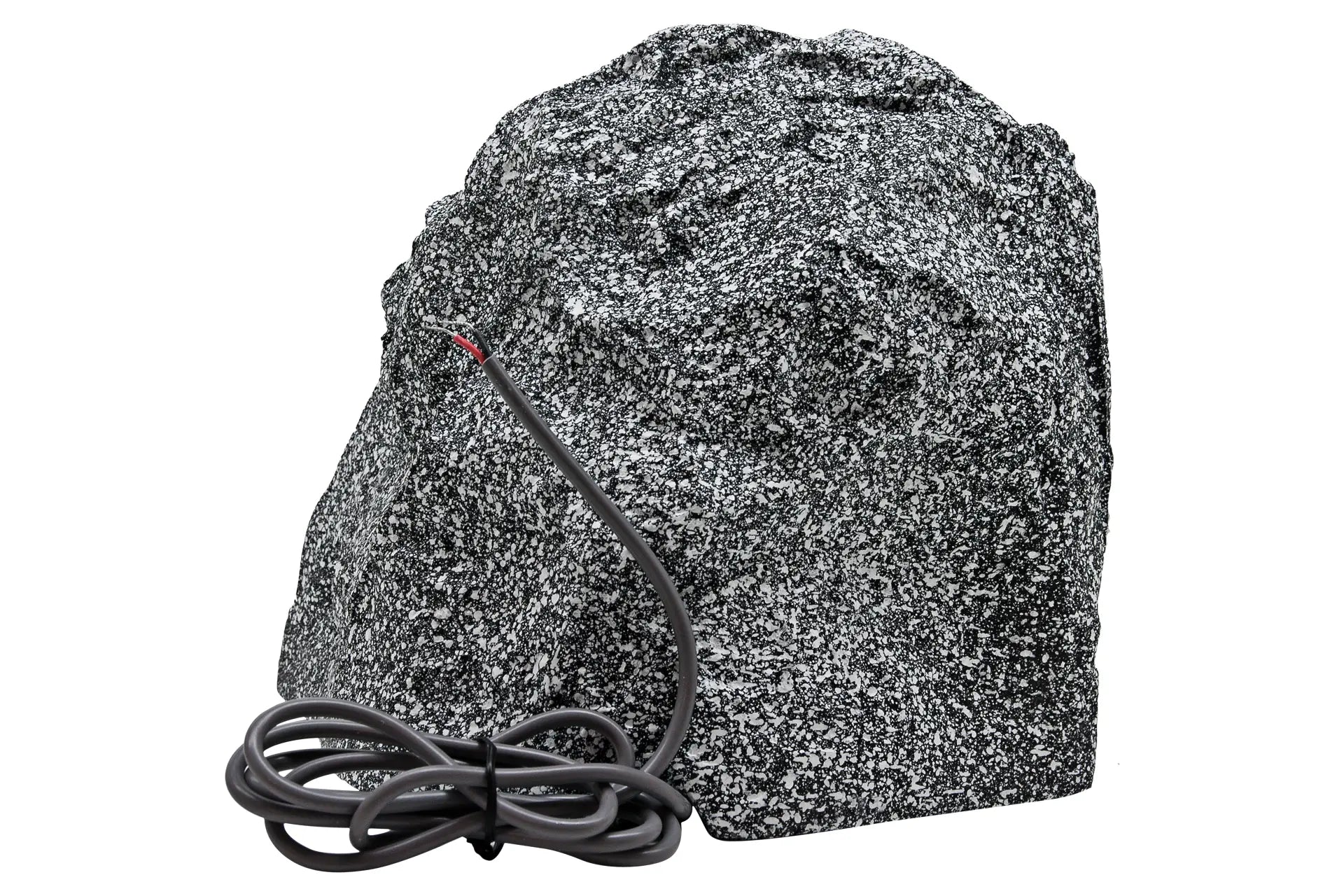

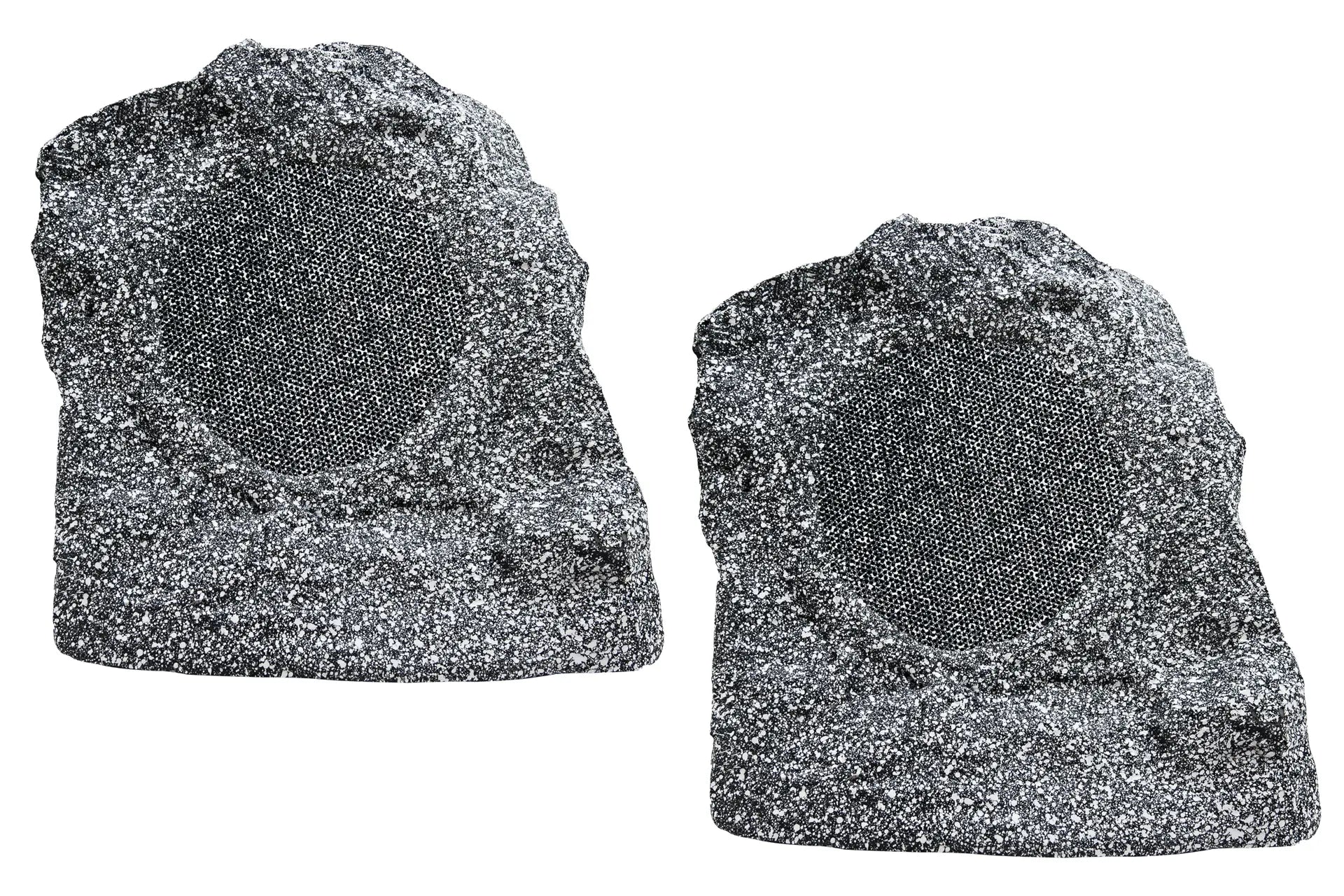

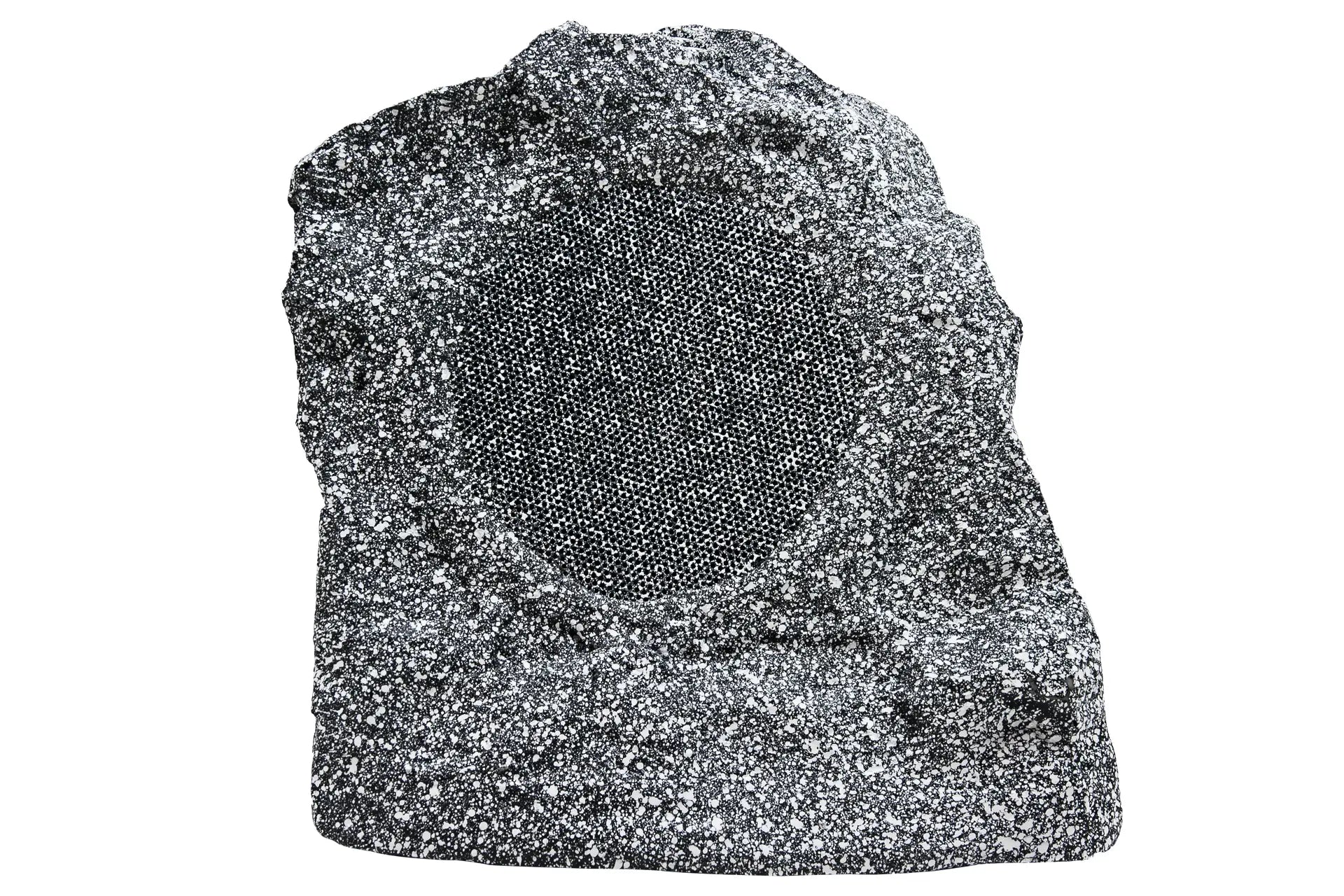

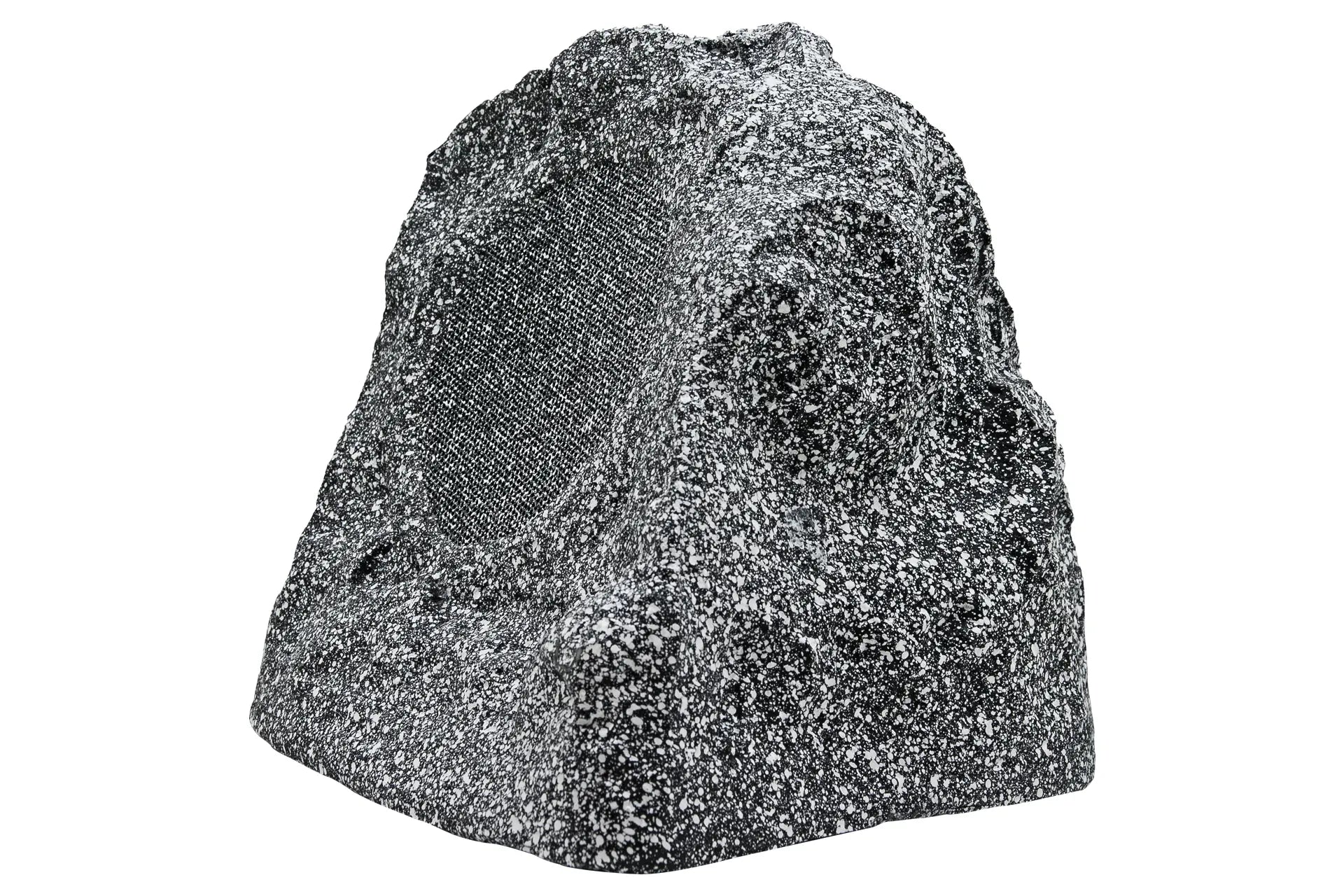

Granite-52 are a pair of rock speakers with a 5 ¼ inch woofer and a ½ inch tweeter. They serve as your left and right speakers and have an amazing frequency response that is unmatched by any other rock speaker. They produce a clean, accurate sound.
The ROCK-on subwoofer, the Granite-10D, features high power crossovers that reduce distortions and deliver pure sound. Also, Granite-10D’s port is “S” shaped so water cannot get trapped inside.
The Granite-10D brings bass to your outdoor space, something that is greatly needed in today’s rock speaker market. Combined with the Granite-52 speakers which have a matching finish, you can turn any backyard into an entertainment center.
Couldn't load pickup availability
Wiring Options
Earthquake Sound’s XJ-300FR Stereo amplifier can be used for your ROCK-ON 2.1 system. In tri-mode wiring the user can connect the 2 channel stereo and the mono at the same time. The subwoofer connection below demonstrates a series wiring formula which has a load impedance of 8-Ohm.
To simplify the wiring process, use Earthquake Sound’s SWAT 2.4 Wireless Transceiver:
- Connect the rock speakers and subwoofer to the XJ-300FR amplifier as shown above.
- Connect the SWAT 2.4 Receiver to the XJ-300FR amplifier through the RCA inputs.
- Connect the SWAT 2.4 Transmitter to any music player that has a mini jack or RCA output. Note: Make sure both the Transmitter and the Receiver are connected to a power source, either through the DC power supply or the USB port.
