RBS-52

Sold per pair.

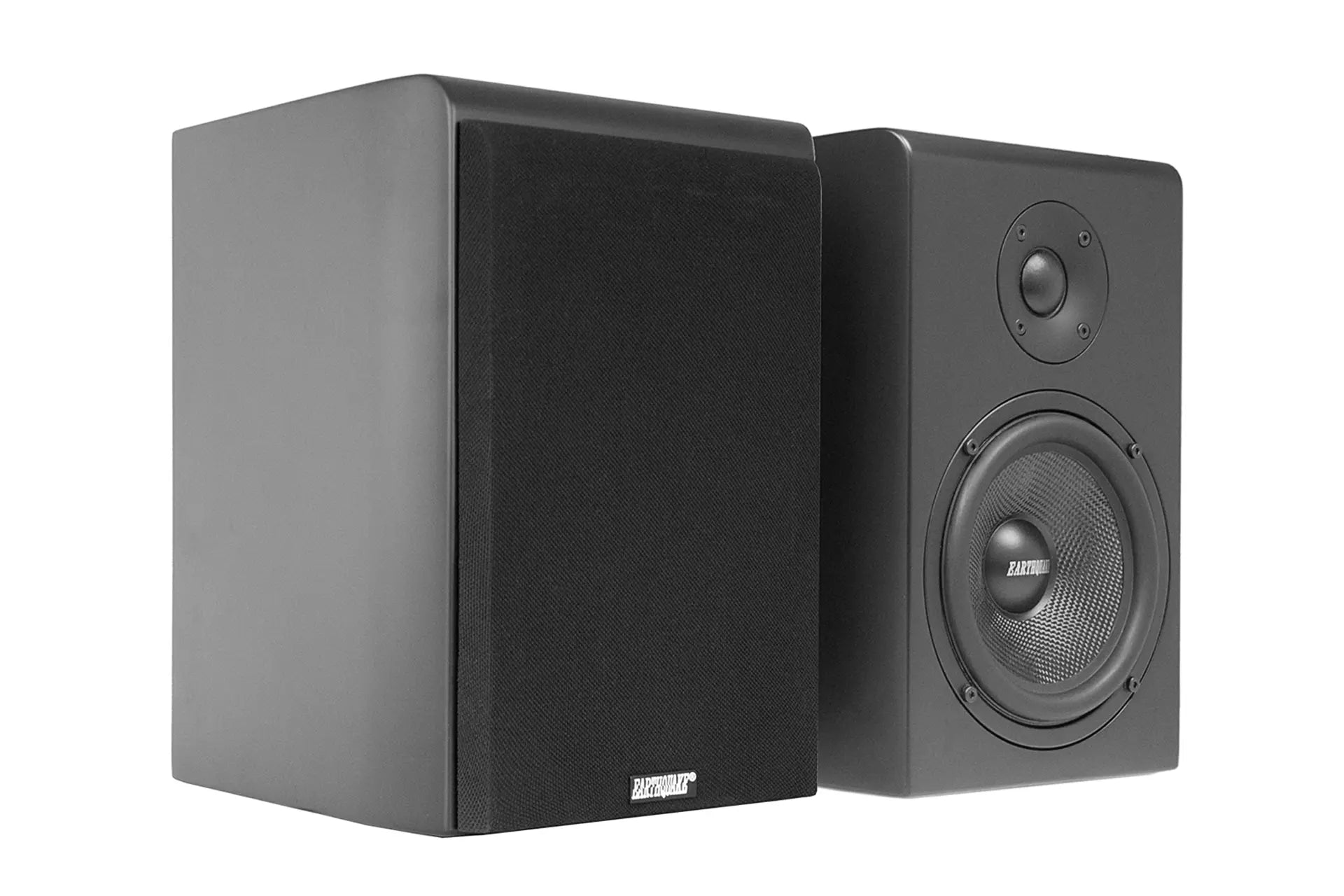

The Earthquake Reference Bookshelf Speaker RBS-52 is a compact passive monitor speaker with exceptional audio quality. It has a neutral and elegant appearance making it ideal for any setting. With focus on the core audio qualities the RBS-52 is free from costly gimmicks and bejeweled surfaces. Its rational design and audio obsessed internals comes together to make the  RBS-52 superb value for money and attainable on almost any budget.

The Earthquake aficionado will recognize their iQuake genetics as both tweeter and woofer are almost identical to those in our long running iQuake series, one of the most lauded compact speakers on the market.
Perfect for home theater, in the studio or anywhere a small unassuming high quality speaker  is needed.

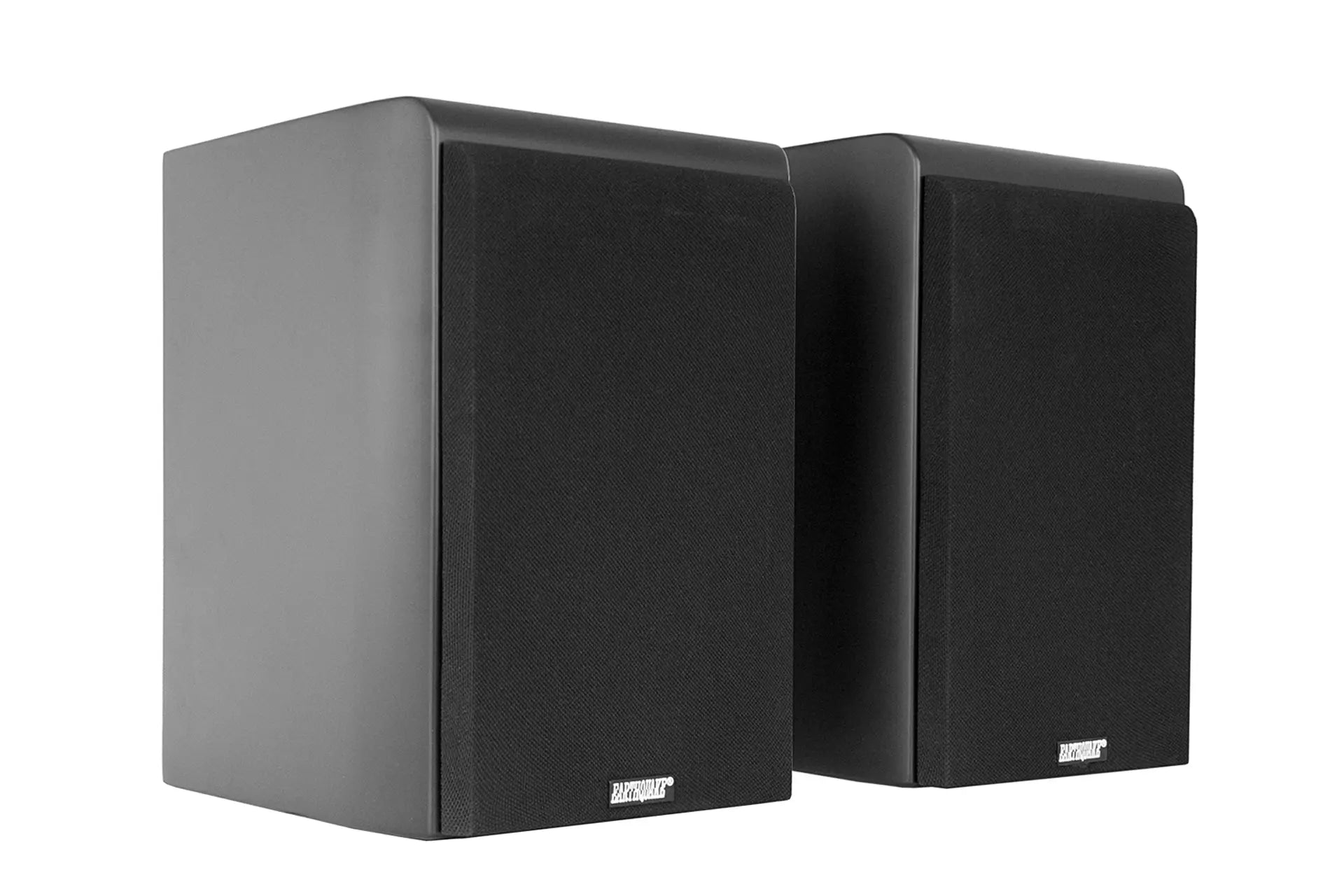

A self-centering, removable magnetic fabric front grille provides a pin-hole free front fascia.
€0,00
€0,00

Piston-Max Technology
PMT :(Piston-Max Technology) A patented Earthquake technology that enhance acoustical output while keeping a minimal footprint.
The 5.25 inch wideband woofers are manufactured using the Piston-Max Technology. Piston-Max moves the speaker surround to the outer edge of the cone body, resulting in 20 percent increase of surface area. This translates into more sound and higher efficiency.

iQuake Internals
iQuake Internals : Superior quality highly evolved internals derived from the iQuake speaker line. Enhanced and perfected over 4 generations of iQuake iterations.

Specifications
Model Name: RBS-52
EAN: 0068975901395

  • Amplifier Power: 50 to 300 Watts RMS (Recommended Amplifier Power)
  • Crossover Frequency: 3kHz (High Pass)
  • Frequency Response: 30Hz - 20kHz
  • LF/MF Driver: 5.25" Carbon Fiber with patented
  • PistonMax™ Technology
  • Nominal Impedance: 8 ohm
  • Sensitivity: 90 dB
  • HF Driver: 1" Silk Dome NEO Tweeter

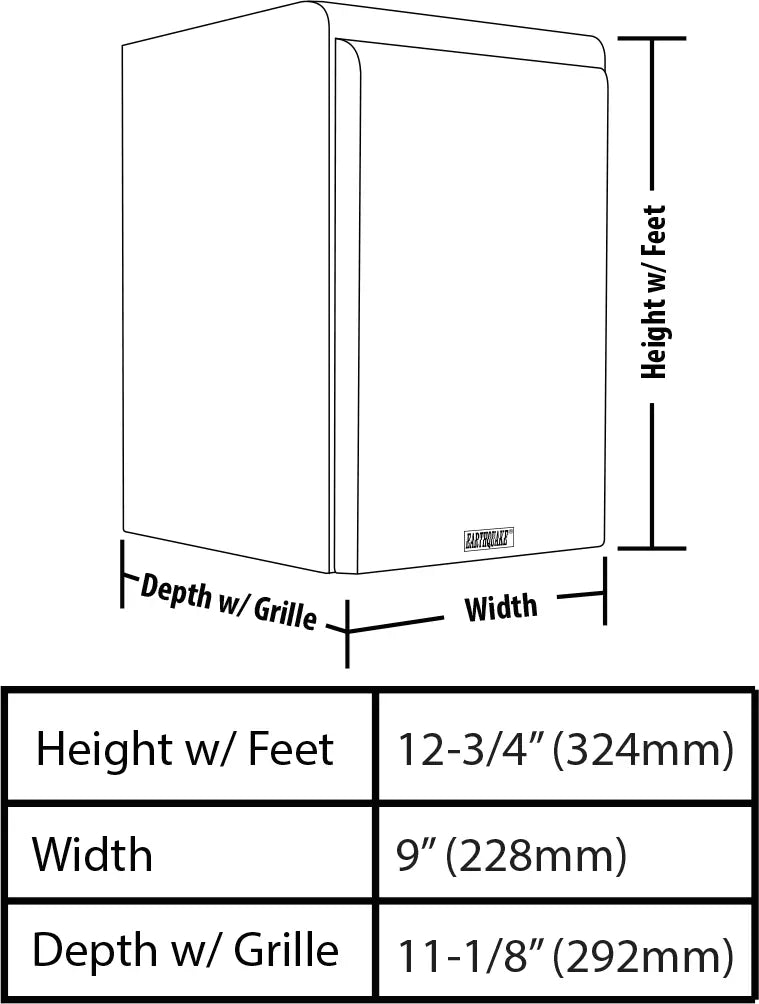

Box Dimensions: 48 × 32 × 37 cm
Box Weight: 8.6 kg

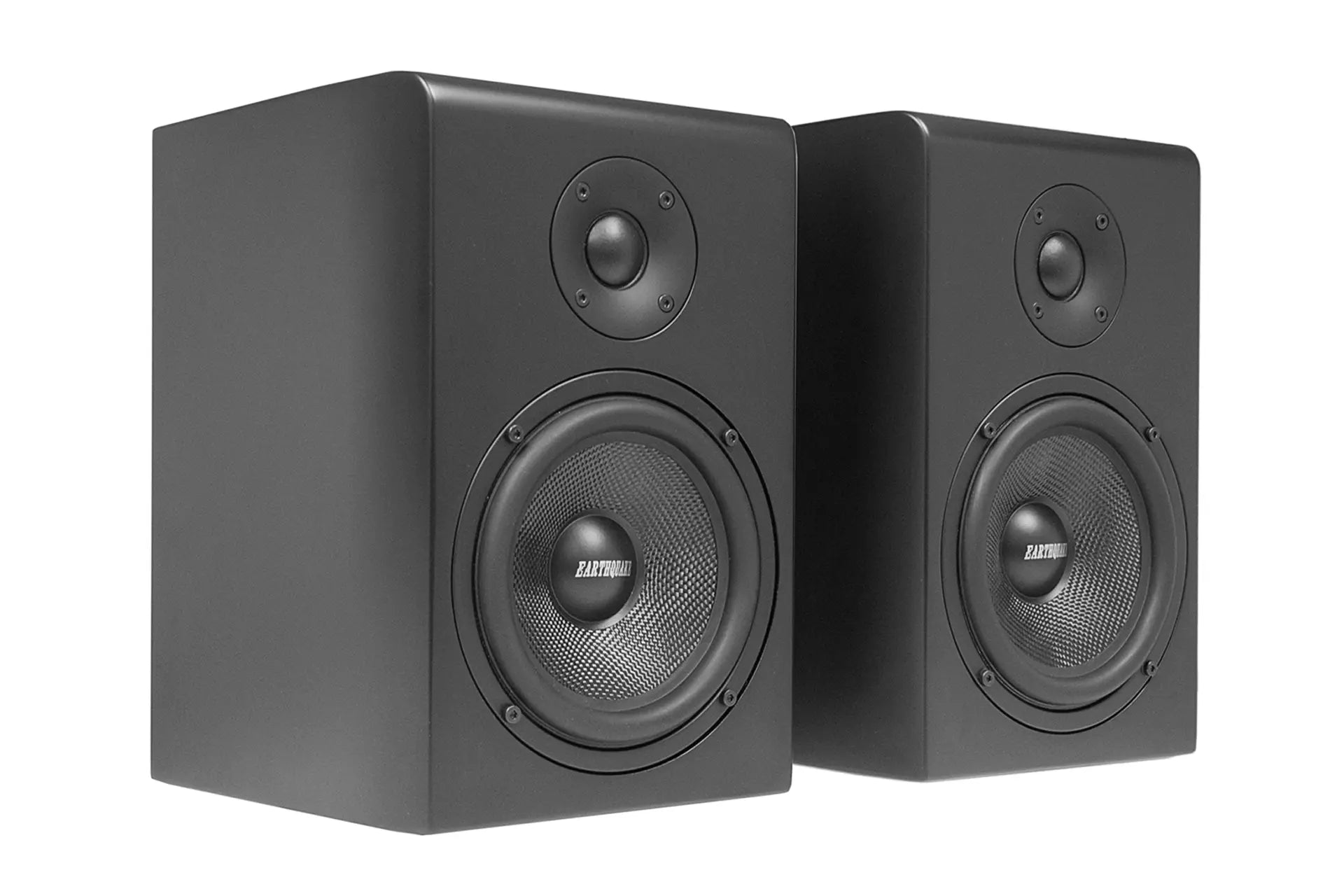

  • 1” silk dome NEO tweeter
  • 5.25” Low-mass rigid carbon fiber mid-bass driver
  • Enforced Bass Reflex Enclosure

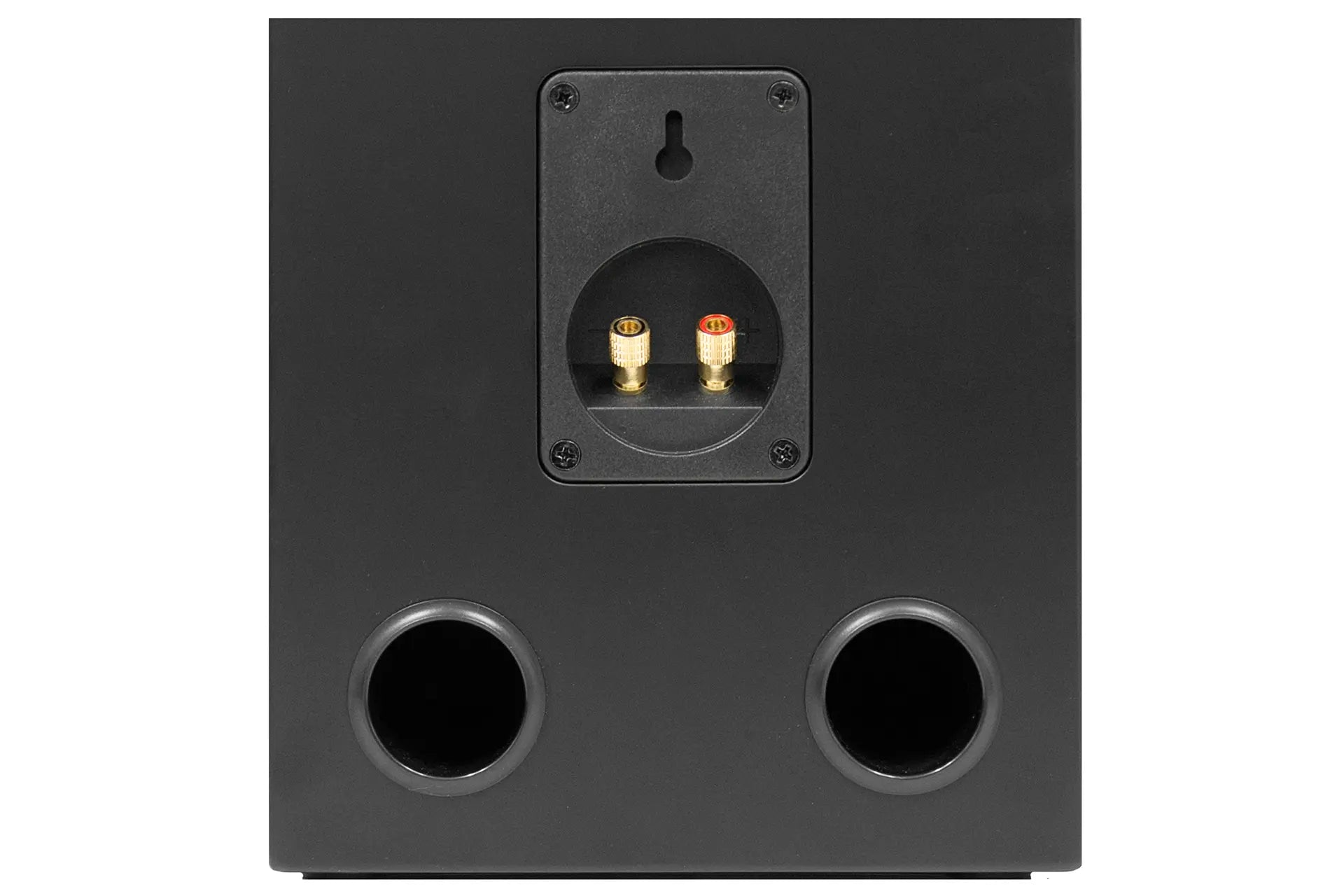

  • Gold Plated Terminals
  • PistonMax™ Technology
  • Removable Self-centering Magnetic Grille
