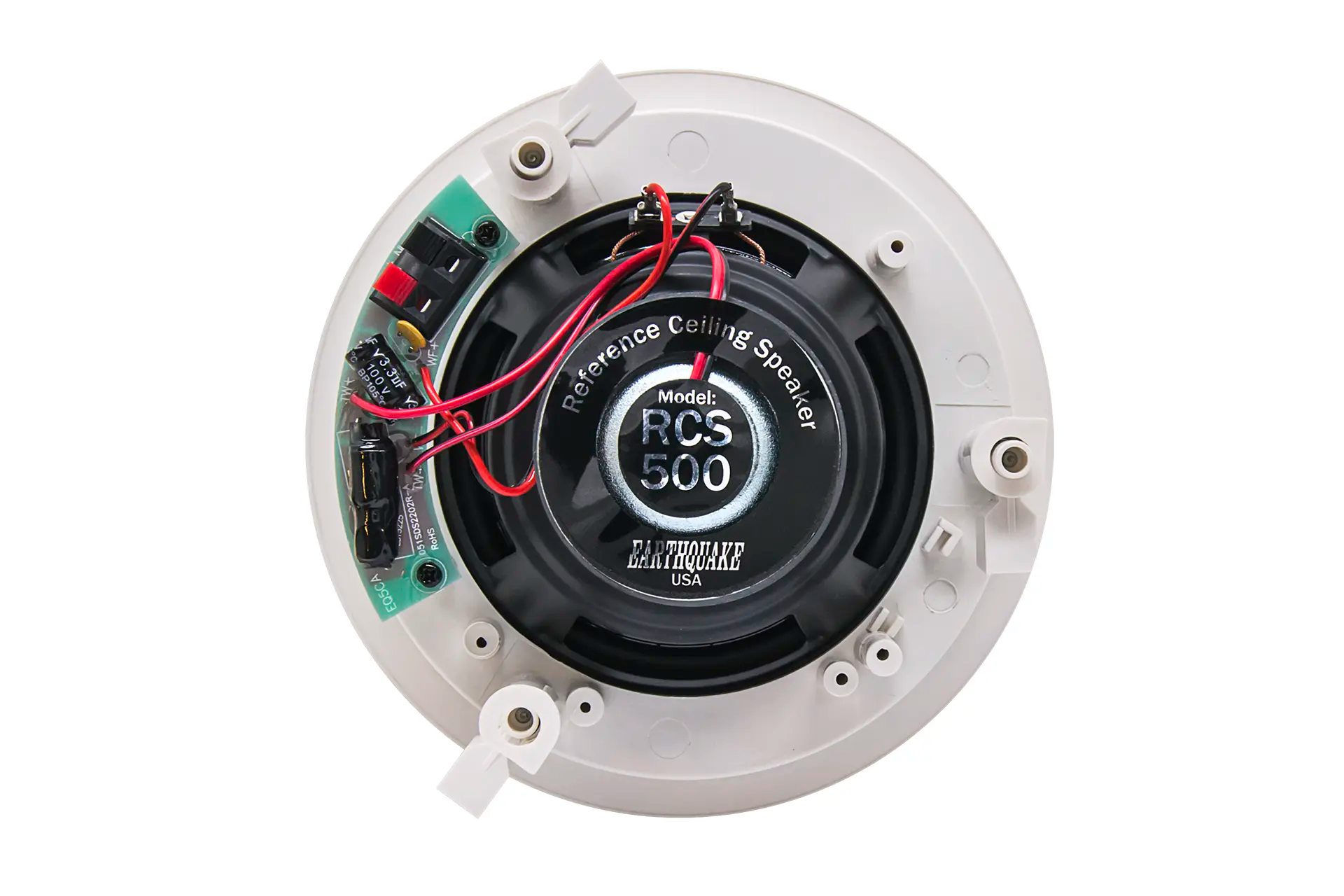

RCS-500

Sold per pair.

RCS Series

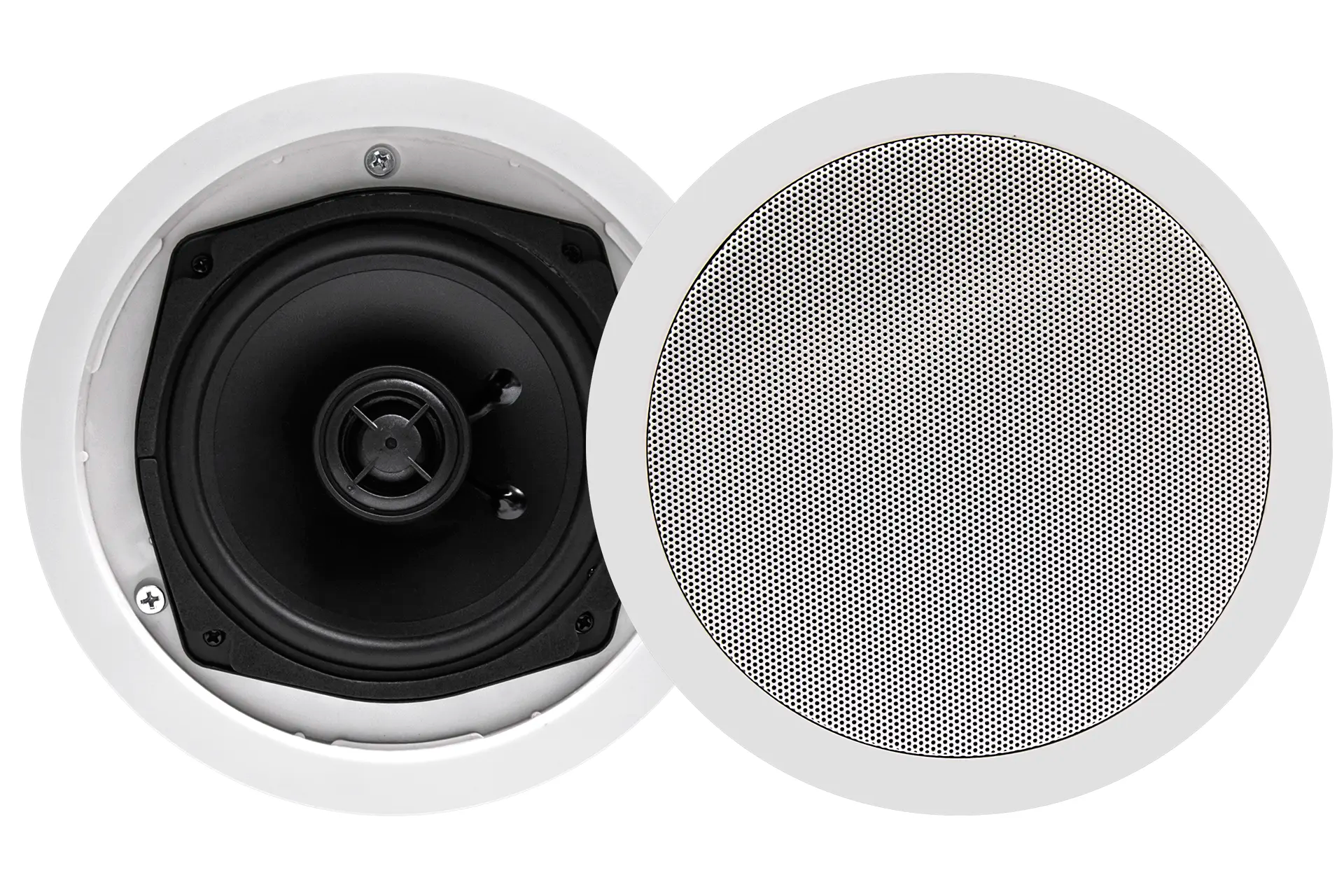

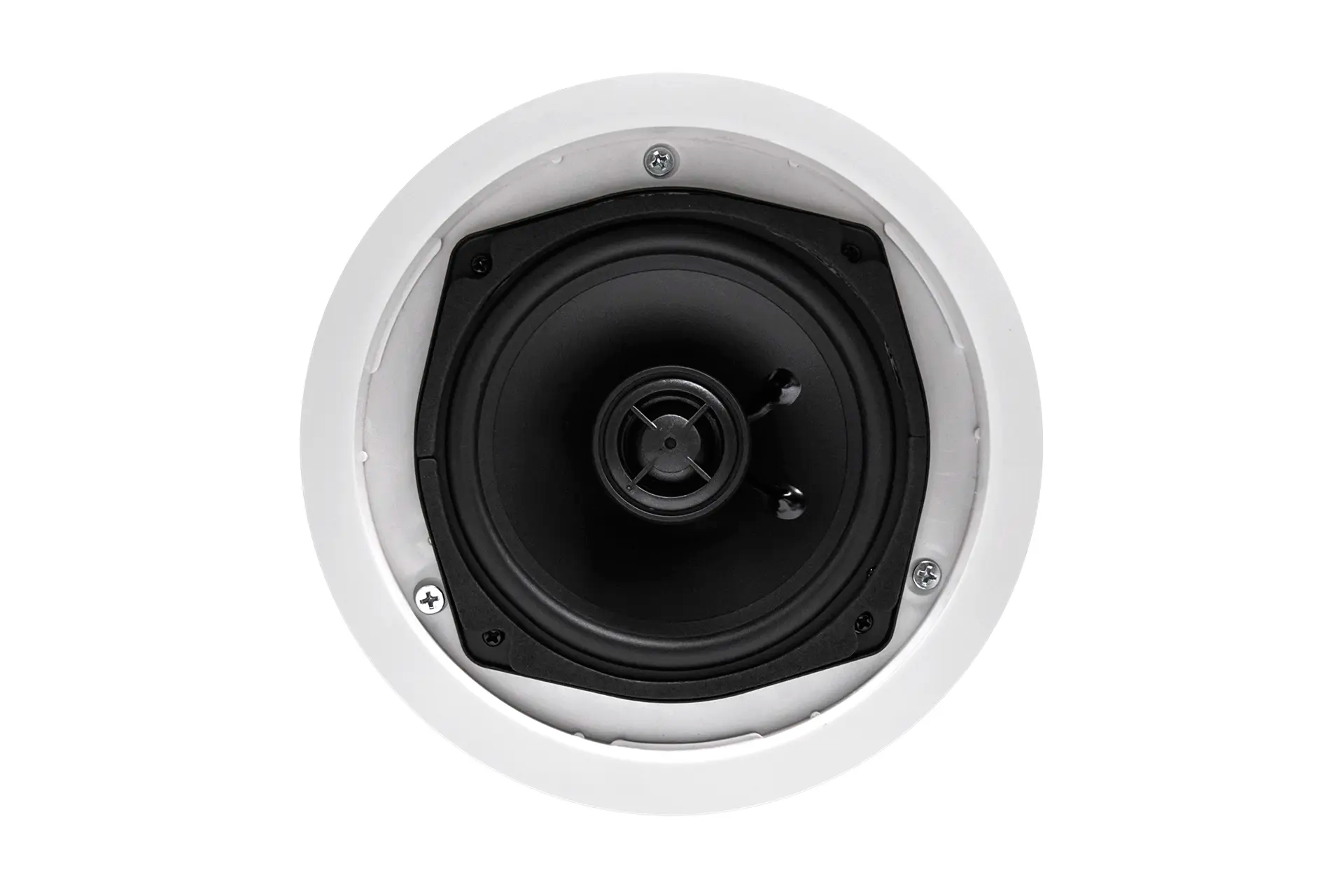

The budget reference series is all about quality fundamentals. Everything has been trimmed, leaving only the bare essentials – good sound, reliability and affordability. The RCS series features polypropylene woofer cones for durability, weatherability and good looks. Each speaker has a 1 inch (25mm) silk dome swiveling NEO tweeter that can be aimed at the direction of the listeners for better sound staging.

The RCS speakers have 20% less speaker frame resulting in reduced visibility, smaller footprint and better aesthetics.

Featuring high sensitivity and an easy 8 ohm load, the RCS can be used with very modest amplifiers.

Comes complete with paintable rust-resistant grilles, these speakers can be customized to blend with any décor. Installation is quick thanks to a 3-ear Turn ‘N’ Lock installation mechanism.
€0,00
€0,00

Specifications
Model Name: RCS-500
EAN: 0068975900558

  • Frequency Response: 60Hz - 20kHz
  • Nominal Impedance: 8 ohm
  • Power Handling: 130 Watts
  • Sensitivity: 92dB @1W/1M
  • Tweeter: 1" (25mm) silk dome NEO swiveling tweeter
  • Voice Coil: Single
  • Woofer Size: 5-1/4” (133.3 mm)

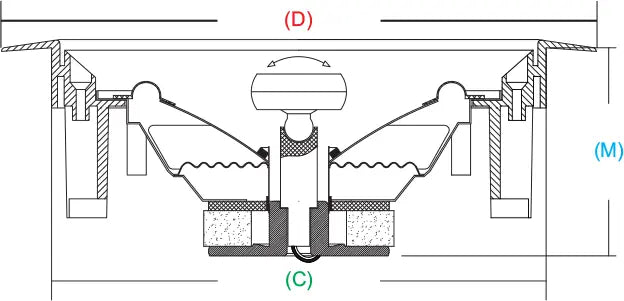

Dimensions

  • Diameter: 191 mm
  • Cut out hole: 165 mm
  • Mounting Depth: 77 mm

Box Dimensions: 24 × 24 × 22 cm
Box Weight: 2.4 kg

  • 1-inch silk dome swivel NEO tweeter
  • 12 dB/Octave filter network crossover
  • 20% less speaker frame for reduced visibility
  • Bumped back basket for high speaker excursion
  • Custom compact spring loaded terminals

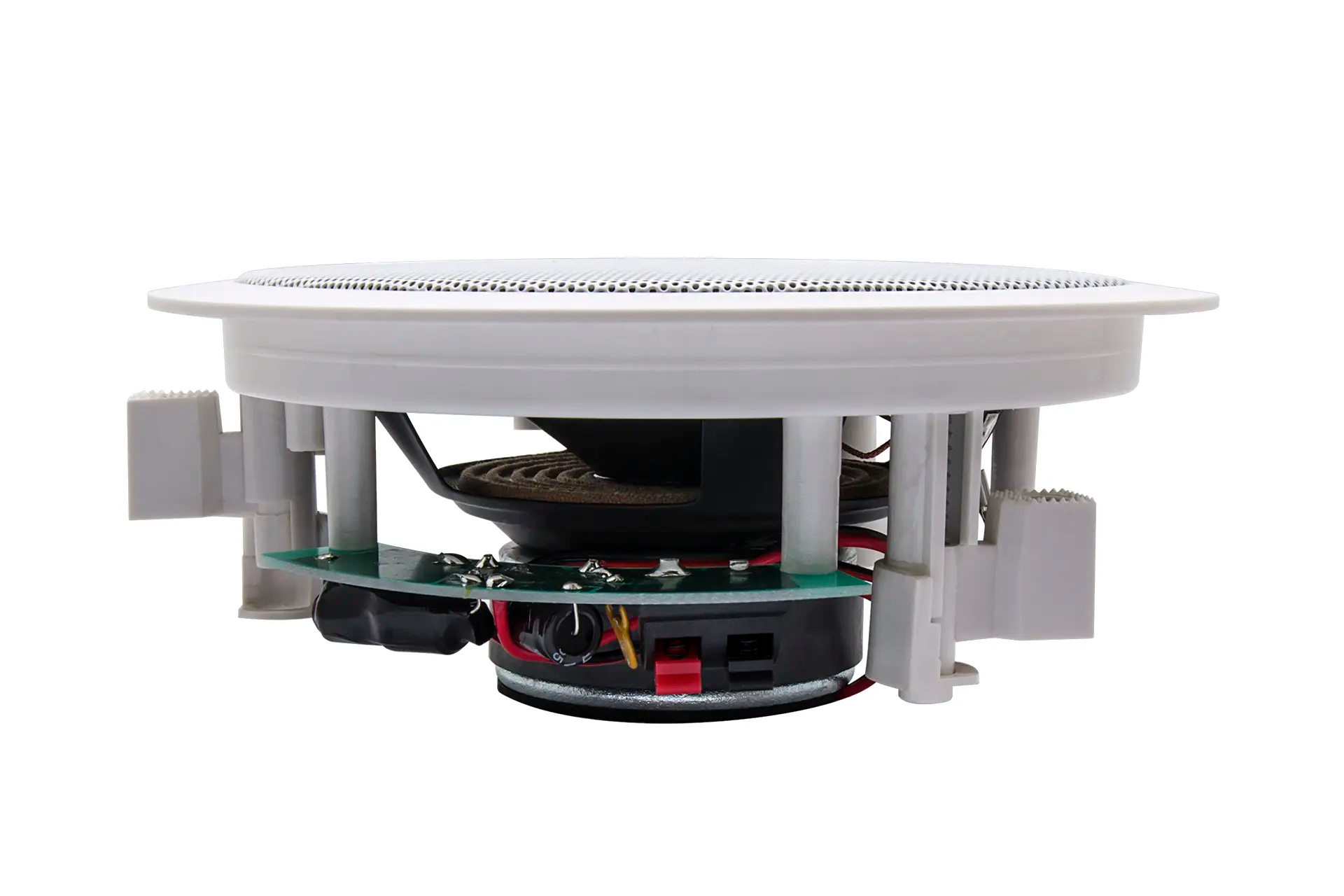

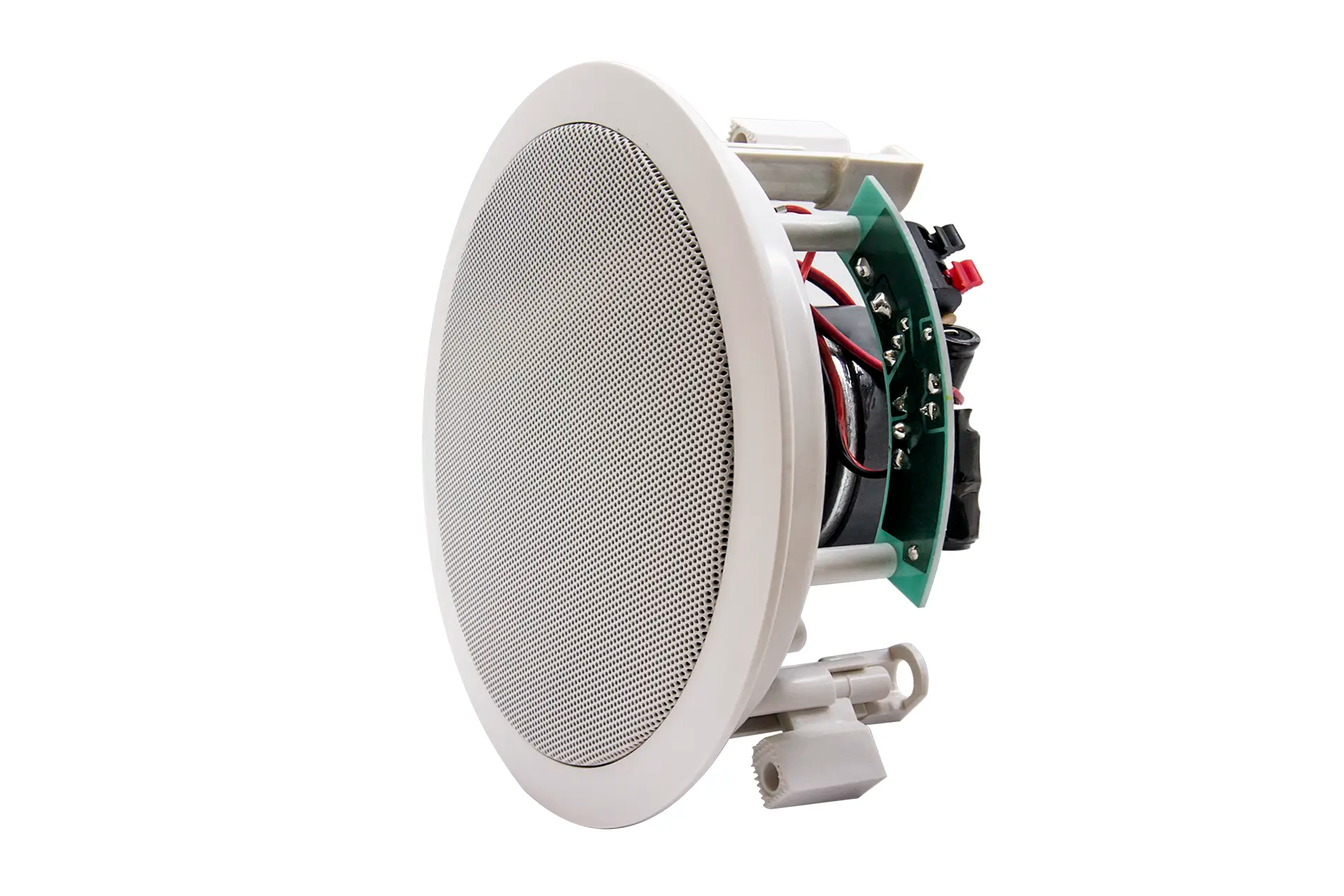

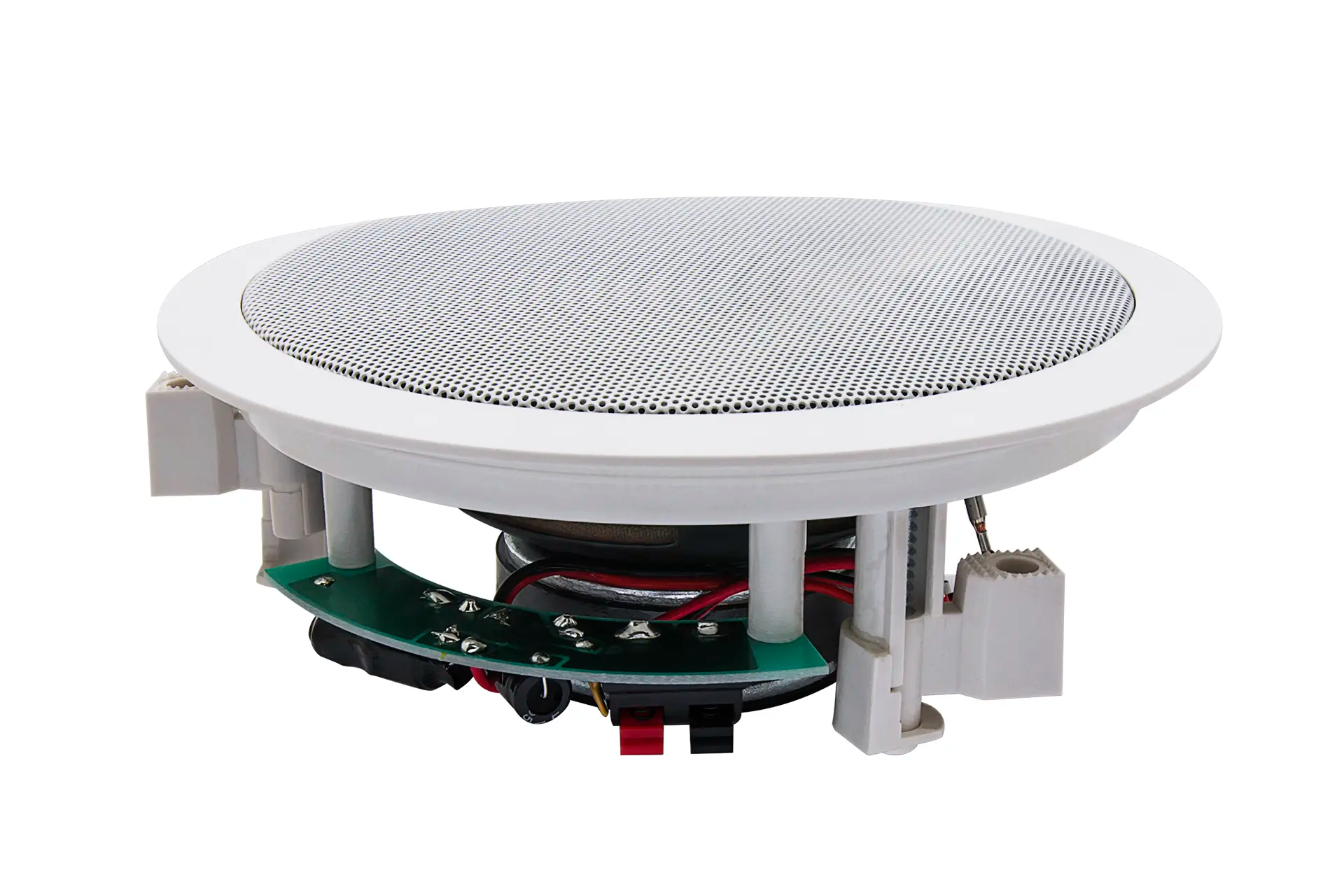

  • Easy to use Turn ‘N’ Lock installation mechanism

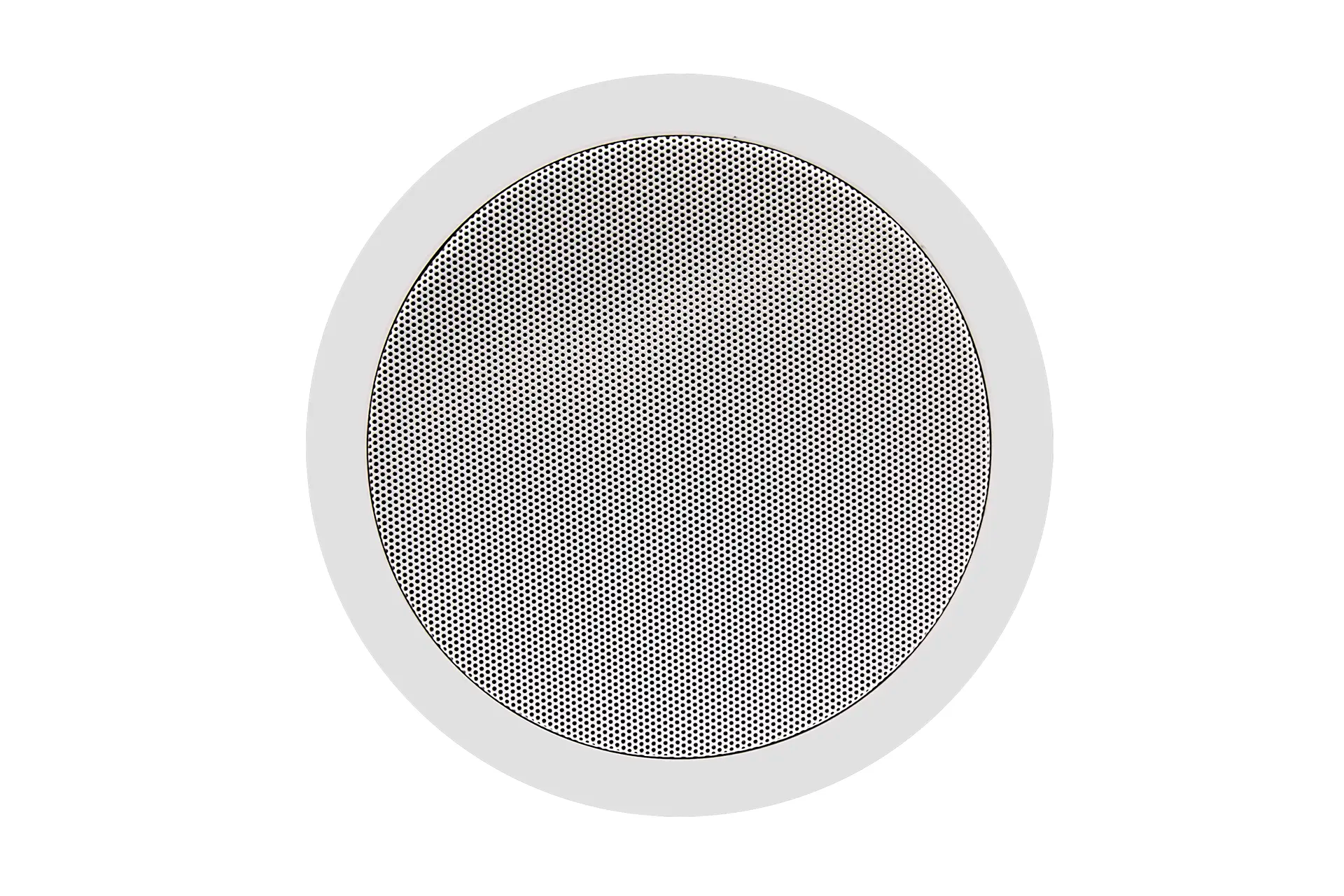

  • Paintable rust-resistant grille
  • Thermal tweeter protection
  • Wider surround for deeper bass and higher speaker excursion

RCS-500 Cut-sheet (ENG)
